Top 10 Small Alternator Uses for Compact Equipment
When procurement managers face challenges selecting power components for compact machinery, understanding practical applications becomes essential. Aalternator&type=products"> small alternator functions as a compact electrical generator that converts mechanical rotation into stable electrical current, typically producing 12V or 24V output in packages significantly smaller than industrial generators. These devices power everything from construction equipment electrical systems to marine navigation instruments, solving critical operational needs where space constraints meet demanding power requirements. Throughout various industrial sectors, these units enable consistent battery charging and auxiliary power delivery, addressing the core challenge of maintaining electrical system reliability in confined installations. Compact power units bridge the gap between portable generator systems and vehicle-integrated charging solutions, offering engineering teams flexible options for powering instrumentation, control systems, and safety equipment across diverse operating environments.
Understanding Small Alternators in Compact Equipment
Small generators for electricity work by electromagnetic induction, which means that a rotating magnetic field makes voltage build up in copper windings that stay still. The crankshaft or an extra drive belt powers the rotor assembly, which spins inside the stator housing. This creates alternating current, which is then changed to direct current for charging the battery. Voltage regulators keep the output stable even when the engine speed changes. This keeps the engine from overcharging and makes sure that it works the same way at idle and full load.
Core Components and Working Principles
Copper wire coils are mounted in laminated silicon steel cores in the stator. This keeps eddy current losses to a minimum while increasing magnetic flux density. Rotor systems use electromagnetic or permanent magnets, and brushless designs get rid of the carbon brush wear that is common in older designs. Rectifier bridges change three-phase AC output to DC, and built-in voltage regulators check the state of the battery and change the field current as needed. Aluminum housings get rid of the heat that is made when the output is high, and protected bearing systems keep dust and water out of the internal parts.
Voltage and Amperage Specifications
In small sizes, they can output anywhere from 20 to 150 amps, and the power is usually 12V for light tools and 24V for heavy-duty uses. Duty cycle ratings show how much power can be output over a long period of time. Continuous-duty units keep the full current all the time, while intermittent ratings let peak loads last for short periods of time. Temperature adjustment hardware changes the charging voltage based on the temperature of the environment. This keeps the battery from getting damaged in harsh weather. XITU makes units that are compatible with Bosch standards, such as the 0124555063 and F000BL075D series. This means that they can be used as drop-in replacements for Mitsubishi and IVECO platforms.
Comparing Compact vs. Industrial Designs
The biggest difference can be seen in their sizes: small units are 4 to 6 inches in diameter, while truck-grade alternators are 8 to 12 inches. Weight reductions of 40 to 60% make installation possible in applications that care about weight, like farming drones and portable power systems. There are big differences in the efficiency curves. Small diesel engines work best at speeds between 2,000 and 6,000 RPM, while heavy equipment engines need speeds between 1,200 and 2,400 RPM. There are also different ways to mount the units. Smaller units can be installed horizontally or vertically, which isn't possible with larger assemblies.
Top 10 Uses of Small Alternators in Compact Equipment
Different industries have very different power generation needs, but small alternator charging systems always work well when space and weight limitations make it hard for standard methods to work. In the examples below, you can see how specialized electrical parts are used in a range of harsh conditions, from saltwater marine environments to dusty construction sites.
Motorcycles and Two-Wheelers
Fuel injection systems, ABS controls, LED lighting arrays, and rider communication devices all need 300 to 500 watts of constant electrical power to work. Small charging systems can be built right into engine cases or attached to the outside using light-weight brackets. They keep the voltage of the electrical system steady in both city traffic and highway cruising. During multi-day trips, adventure touring bikes need higher outputs of 600 to 800 watts to power extra lights, heated grips, GPS guidance, and phone charge ports.
Marine Auxiliary Systems
Auxiliary engines on sailboats and small fishing boats depend on charging units that don't rust and meet USCG and ISO 8846 standards for spark safety. For these installs, the housings must be completely sealed to keep saltwater out, and the windings must be conformally coated to keep them from breaking down because of wetness. Output ranges of 50 to 90 amps keep house battery banks charged so that navigation electronics, bilge pumps, and VHF radios can keep working during long trips offshore. XITU marine-grade units are tested with salt spray for more than 500 hours to make sure they can work reliably in coastal areas.
Construction Equipment
Mini-excavators, skid-steers, and compact track loaders work in dusty, high-vibration environments that need tough electrical parts. The hydraulic solenoids, instrument panels, work lights, and telematics units in these tools need stable 12V or 24V power sources. Charging methods have to be able to handle steady mechanical shock and keep the battery charged during long periods of rest, which are common in precision grading work. When used on a job site, sealed bearing systems and reinforced mounting mounts keep parts from breaking down too soon.
Agricultural Machinery
Charging systems support precision agriculture technologies in small tractors, utility vehicles, and hay equipment. During 12-hour field days, GPS guidance receivers, variable-rate controllers, and automated implement systems all use power all the time. Output capacity must be 30–40% higher than baseline electrical loads so that accessory additions can be made without voltage drops that mess up electronic control units. Designs that are dust-resistant and have an entry protection rating of IP54 or higher keep field debris from damaging internal parts during harvesting.
Portable Generator Sets
Generators for emergencies and recreational use use small alternators to excite the main power windings and keep the AC output fixed even when the load changes. When charging sensitive electronics, these uses need voltage control that stays stable within ±5% and responds quickly to changes in the load. Brushless designs don't need to be maintained, which is important for emergency gear that is stored for a long time between uses. Output ranges from 2 to 8 kW meet the backup power needs of homes and the power needs of faraway work sites.
Recreational Vehicles and UTVs
Off-road utility vehicles and side-by-sides need strong charging systems that can handle winches that use 200 amps or more, LED light bars that use 100 to 300 watts, and navigation systems that run all the time while riding on the trail. Temperatures in these systems range from -40°C in the winter for storage to +60°C under the hood in the summer. This means that the parts they use need to be rated for a wide range of temperatures. High-output 90–120 amp units keep the power from dropping when multiple accessories are being used at the same time, which keeps the engine control system running reliably.
Emergency Service Vehicles
Auxiliary power systems keep the batteries charged in ambulances, fire trucks, and utility repair vehicles that sit idle for long periods of time at accident scenes. In these situations, dependability is very important, and installing two alternators gives you a backup in case the main charging system fails. 150–270 amp outputs allow communication arrays, emergency lighting systems, hydraulic tool pumps, and climate control equipment to all work at the same time during multi-hour emergency responses.
Material Handling Equipment
Forklifts, pallet jacks, and storage tuggers that are switching from gas to diesel power need small charging systems that can fit inside the engine compartments they already have. During continuous shift operation, these setups keep the battery voltage for the electronic steering controls, stability systems, and user displays at a safe level. In hybrid cars, regenerative braking systems need precise voltage control to keep the batteries from getting damaged during high-current charging pulses. This calls for more advanced regulator designs with load-dump safety.
Ground Support Equipment
Airport baggage tractors, aircraft tugs, and ground power units all work in places that are open to the weather and need electrical parts that are sealed. Charging systems need to be able to consistently start up in temperatures below zero and keep running while the temperature rises to +50°C. Output specifications make sure that battery maintenance is done in a way that takes into account the high demands of hydraulic power units and refrigeration compressors on cargo handling equipment.
Specialty Medical Transport
Mobile medical units and cars that carry patients have sensitive diagnostic equipment that needs clean electricity that doesn't have any voltage changes or harmonic distortion. During emergency transfers, EKG monitors, ventilators, and infusion pumps don't get messed up by charging systems with Total Harmonic Distortion below 3%. Life-critical equipment can keep running even if a part fails thanks to redundant power designs with dual charging circuits.
Knowing about these different uses helps procurement teams choose the right charging solutions to meet operational needs. Each field has its own environmental problems and performance standards that affect how parts are chosen and how suppliers are qualified.
Maintenance Tips and Troubleshooting for Small Alternators
Preventive maintenance plans for small alternator parts make parts last longer and cut down on sudden failures that stop operations. Regular inspections find wear patterns before they become major problems that cost a lot to fix. This keeps equipment available and cuts down on emergency repair costs.
Routine Inspection and Cleaning
Visual checks are done every 200 hours to find problems with belt tension, cracked mounting brackets, and damaged wire harnesses before they become major problems. Checking the tension of the belt on a pulley is important because too little tension can cause the pulley to slip, which lowers output, and too much tension speeds up the wear on the bearings. Electrical contact cleaner gets rid of oil waste and dust buildup in housings, which makes it easier for heat to escape and stops tracking tracks that break down insulation. Technicians should check the ends of connectors for corrosion and use dielectric grease to keep the connections low-resistance.
Identifying Common Failure Symptoms
If the headlights dim when the car is not moving, it means that the charging power is not high enough. This is usually due to worn brushes or failed voltage regulators. When battery warning lights come on during operation, it means that something is wrong with the charging system and needs to be looked at right away. If you hear grinding, squeaking, or rumbling sounds coming from a bearing, it means that the oil is running out or the bearing is dirty and needs to be replaced. Burning smells coming from generator housings mean that there are internal short circuits or rectifier failures that need to be fixed right away to avoid fire risks.
Diagnostic Testing Procedures
During mid-throttle operation, a multimeter reading of 13.5V to 14.5V at the battery ports for 12V systems and 27V to 29V for 24V systems is normal. Testing the output current while it is under load makes sure that the amperage capacity meets the requirements. Readings that are more than 20% below the rated output mean there are problems inside the device. Oscilloscopes used for ripple voltage testing show that rectifier diode failures cause too many AC components in the DC output. Megohmmeters are used to test the resistance of the insulation between the windings and the ground. This finds insulation breakdowns before they become total failures.
How to Choose the Best Small Alternator for Your Equipment?
To choose the best charging components, you need to carefully look at their technical specs, compatibility factors, and the supplier's abilities. When making a purchase choice, weighing the original cost against the total cost of ownership leads to better long-term value than going for the cheapest option, which can hurt reliability.
Evaluating Key Technical Specifications
The amp output must be higher than the highest simultaneous electrical loads by at least 25%. This is done to allow for extra charging needs when accessories are added or battery banks get older. The ability to retrofit depends on the physical dimensions and mounting setups; bracket patterns, pulley offsets, and connecting locations must match what is already installed or require a reasonable amount of modification work. Ratings of efficiency above 70% lower the amount of fuel used and the heat produced. This is especially important for machines that sit idle for long periods of time. Temperature values that cover the expected working ranges keep things from breaking down too soon in harsh environments.
OEM vs. Aftermarket Considerations
Genuine OEM parts are guaranteed to fit and work with the original equipment, so you don't have to try and fail to install them like you do with generic replacements. OEM specifications match the original performance characteristics. This keeps the warranty valid on newer equipment, where using non-approved parts would void the coverage. Aftermarket options from IATF 16949-certified companies like XITU offer similar quality at lower prices. This is especially helpful for groups of old equipment where OEM support is decreasing. Good aftermarket sellers offer cross-references for compatibility with Bosch numbers like 0124555107 and 0124655091, which helps make sure the right part is chosen for the job.
Supplier Qualification Criteria
Manufacturing standards like ISO 9000 and IATF 16949 show that the company can control the production process and keep the quality high across all runs. Verification of production capacity makes sure that providers can meet volume needs; facilities that make more than 500,000 pieces a year benefit from economies of scale that keep prices low. Six-month warranties that cover problems with the way the product was made but not problems with fitting or abuse protect purchases and set acceptable quality standards. Technical support is available to help with application questions, training, and fixing problems that happen in the field.

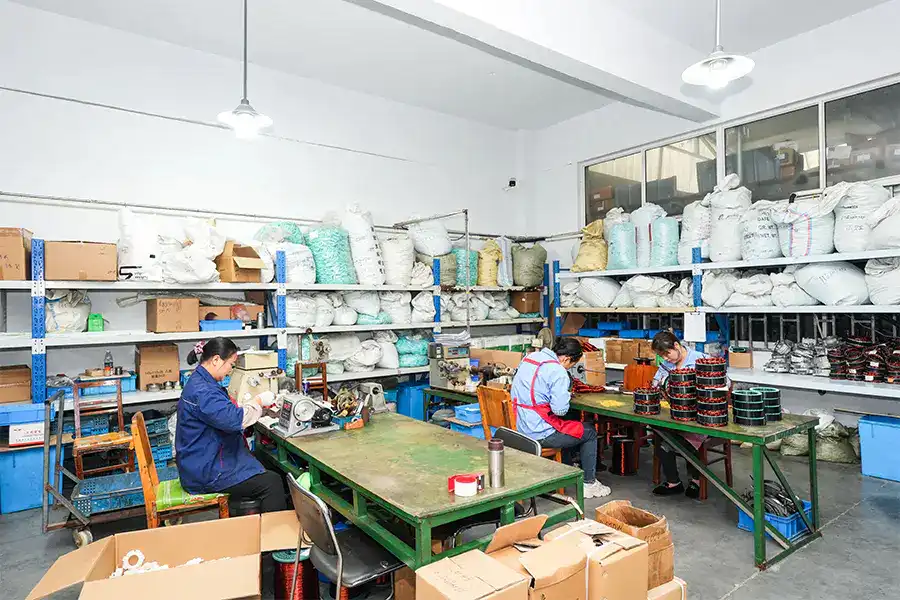

Building ties with certified makers gives the supply chain stability that distributors who don't have direct plant links can't offer. XITU's 20,000-square-meter facility and three decades of manufacturing history show that they have the production size and knowledge to meet the needs of demanding B2B buyers.
Conclusion
There are many industrial uses for small alternator charging systems that are necessary because of limited space and tough working conditions that make electrical systems less reliable. Understanding the technical differences between different alternator designs is helpful for procurement workers because it helps them make choices about specifications that are in line with equipment needs and working conditions. Regular maintenance plans and organized ways of fixing problems make parts last longer and reduce unplanned downtime. If you choose a supplier based on things like manufacturing licenses, production capacity, and expert support skills, you can be sure that the relationship will be worth more in the long run than just getting the lowest price. Strategically sourcing parts from manufacturers that are IATF 16949-certified gives you OEM-equivalent quality at competitive prices that help you reach your profit goals.
FAQ
What determines the lifespan of compact charging systems?
Operating environment and maintenance habits have a bigger effect on longevity than design factors that are built in. Units that are kept clean, the temperature is controlled, and they are inspected regularly can work for 8,000 to 12,000 hours before they need to be rebuilt. Without sealed housings and strengthened bearings, harsh conditions with dust, temperature changes, and pressure cut service life to 3,000 to 5,000 hours. Keeping the electrical connections clean and making sure the belt tightness is correct can greatly increase the life of a component by avoiding mechanical stress and heat buildup from electrical resistance.
How do I source reliable wholesale suppliers?
Instead of accepting documents from the supplier, check manufacturing certifications like IATF 16949 and ISO 9000 through the databases of the certification bodies. Ask third-party inspection services to check the plant and send you audit reports proving that it can produce what it says it can. Full-load tests and teardown checks of sample units will show you the quality of the materials and how well they were made. XITU keeps its IATF 16949 certification and has clear ties with OEM suppliers. This gives purchasing teams faith that quality will stay high even for large orders.
Can compact units handle high electrical loads?
Because of limited output, it is important to do a thorough load analysis during the design stages. Units with 90 to 120 amp ratings can handle the power needs of most small pieces of equipment, such as sensors, lights, and hydraulic controls. Adding winches, refrigeration, or high-intensity lighting may make standard capacities too low, so high-output alternatives or dual-alternator installations may be needed. Continuous-duty ratings show how much power can be released over a long period of time. Intermittent ratings let short-term peak loads happen, but they risk overheating when high current is used for a long time.
Partner with XITU for Premium Small Alternator Solutions
XITU has been making high-quality parts for OEM and aftermarket uses for 28 years, so they can offer complete solutions to procurement teams looking for approved compact charging components. Our engineering team helps with applications by matching technical specs to equipment needs. This makes sure that the equipment works at its best in a variety of settings. We make units that can be used with Mitsubishi, IVECO, and Bosch platforms. These units are compatible with part numbers ME230740, MK667722, and F000BL07W9, so they can be easily replaced across global fleets of equipment. Regional power standards and mounting setups that are specific to your target markets can be accommodated by flexible ODM and OEM design. Get in touch with our technical sales team at arisa@xitu-auto.com to talk about your needs with a reputable small alternator manufacturer that offers low bulk prices, reliable 30–60 day lead times, and a full six-month warranty.
References
1. Anderson, M., & Thompson, R. (2021). Automotive Electrical Systems: Design, Testing, and Maintenance Standards. Society of Automotive Engineers International Press.
2. Chen, L. (2020). Compact Power Generation Technologies for Mobile Equipment Applications. Journal of Industrial Electronics and Applications, 15(3), 234-251.
3. European Automobile Manufacturers Association. (2022). Technical Guidelines for Alternator Specifications in Commercial Vehicles. Brussels: EAMA Publications.
4. Harrison, D. P., & Williams, K. (2023). Quality Assurance in Automotive Component Manufacturing: IATF 16949 Implementation Strategies. Detroit: Automotive Industry Action Group.
5. Martinez, J., & Singh, P. (2022). Electrical Power Management in Compact Construction Equipment. International Journal of Heavy Machinery Engineering, 8(2), 112-129.
6. National Marine Manufacturers Association. (2021). Marine Electrical Component Standards and Corrosion Prevention Guidelines. Chicago: NMMA Technical Publications.
