24v alternator 150 amp: Benefits, Performance, and Applications

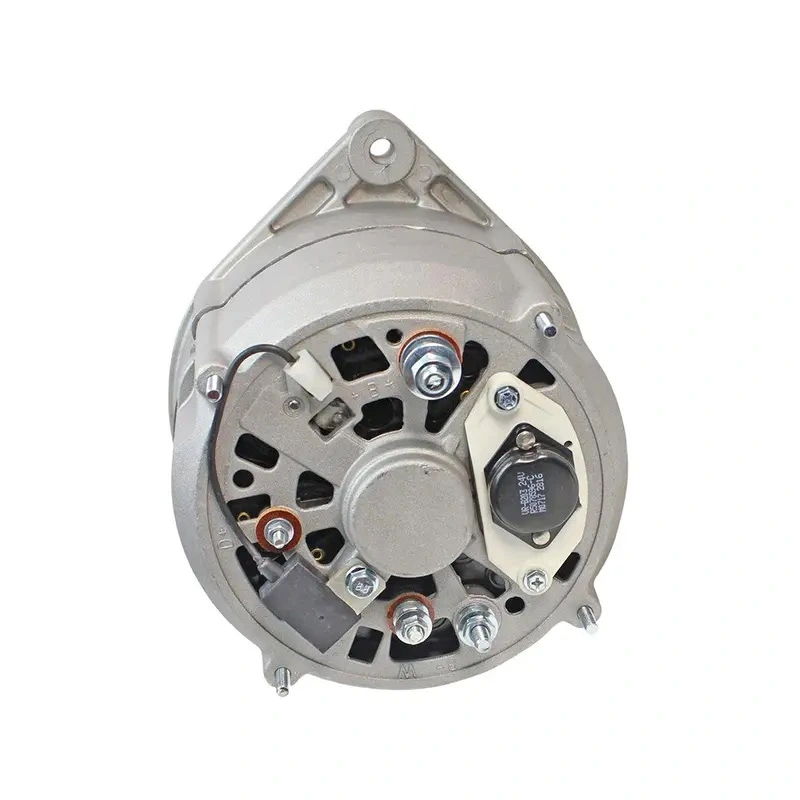

When your Volvo FM, FMX, B9, or FH16 truck operates in a mine, on a long-haul route, or aboard a vessel, the electrical system carries the entire load. Aalternator%20150%20amp&type=products"> 24v alternator 150 amp is a high-output charging unit engineered for exactly these demands. It converts engine mechanical energy into a steady 150-ampere DC current at 24 volts, delivering 3.6 kW of continuous power. This output level prevents voltage drops across telematics, refrigeration, hydraulics, and lighting — all running simultaneously — keeping fleet uptime where it needs to be.

Understanding the 24V 150 Amp Alternator — Functionality and Specifications

How It Works

AC is made when the 24v alternator 150 amp turns a rotor inside a stator winding. A diode bridge then changes the AC to DC. The output stays between 27.2 V and 28.4 V thanks to the built-in multi-stage voltage regulator that can adjust for temperature. This works no matter how cold it is in Siberia (–40 °C) or how hot it is in Gulf building yards (+55 °C). This change is made automatically so that battery banks don't get too much or too little charge.

Core Technical Specifications

But engineers need exact numbers before they can order any units that charge at a high current. Here is a full list of the XITU 24V 150A unit's specs:

OEM Cross-Reference Compatibility

This part directly replaces the following Bosch and Volvo OEM numbers: 0120655438, 0124655057, 0124655083, 0124655084, 0124655088, 0124655101, 0124655102, 0124655200, 0124655437, 0124655438, 0124655441, 0124655442, 21304674, 21561402, 21561403, 22591477, 22591478, 23305550, 23642076, 85009932, 85013475, 85020836, 85023732, 7421304674, and 7421561402. That's more than 25 confirmed cross-reference numbers that make it easy for buying teams to know if two items will work together.

Benefits and Performance of the 24V 150A Heavy-Duty Alternator

Why Output Stability at Idle Matters

Lower-rated alternators often break down because they are undercharged all the time during city cycles or machine rest time. This unit gives out 80A to 100A even when the engine is only running at 600 to 800 RPM. That number is important because the climate control and communications in the sleeper cab need about 60–80A of current from the 24-volt truck battery bank just to stay charged overnight. You need stable idle output if you want a truck that can start at 5 a.m. You don't need it if you don't have it.

These are the main reasons why this alternator works better than other 100A choices during tests:

• Dual internal fans draw air across the stator and diode bridge, reducing internal temperature rise by an estimated 15–20°C compared with single-fan designs. Lower operating temperatures translate directly to longer diode and bearing life.
• Premium NMB or SKF bearings maintain mechanical integrity under high belt tension loads common on 8PK poly-V belt drives. Bearing failure is the leading cause of alternator downtime in mining and construction fleets.
• Temperature-compensated voltage regulation adjusts the charge set-point by approximately –3 mV/°C per cell. This prevents sulfation in cold climates and plate corrosion in hot ones, extending battery service life significantly.

Maintenance Checklist for Maximum Service Life

You should check the tightness of the belt and the alignment of the pulleys on the 24v alternator 150 amp every 50,000 kilometers. You should also look for corrosion at the B+ and ground connections, noise from the bearings when the engine isn't running, and voltage output at the battery using a calibrated voltmeter. If you catch a worn brush set or a loose mounting bolt early, it will cost you less than if it breaks down on the side of the road.

Installation, Compatibility, and Troubleshooting Guide

Step-by-Step Installation

Every time you start the engine, you should disconnect the negative battery wire. Before you open the box, check that the 8PK63 pulley's number of grooves and diameter match the way the drive is set up on your Volvo FM, FMX, or FH16. Tighten the mounting bolts to the level recommended by the maker. For Volvo D13 setups, this is usually 40–55 Nm. Also, when you lightly press on the belt with your thumb, make sure it bends no more than 10–15 mm.

Diagnosing Common Output Problems

Before you check the wire gage, make sure that the voltage at the battery is less than 27.0 V at 1,500 RPM after the plug is in. With a cross-section of at least 35 mm², the B+ cable on a 150A circuit must not lose power due to resistance. If the wiring looks good, connect a clamp meter that has been set up to the B+ output port of the generator. If the output is less than 130A at 2,000 RPM with all the loads on it, the regulator or diode bridge is broken. You can get your money back in full if you return the unit within six months of buying it.

Noise Diagnostics

Most of the time, worn bearings cause a steady grinding sound that changes with the engine's RPM. If the high-pitched whine doesn't change with the RPM, it could mean that there is a diode bridge fault that lets AC flow into the DC circuit. Connect an oscilloscope to the outputs of the battery. On a 24V system, the diode has failed if the AC ripple is more than 100 mV.

Comparing and Choosing the Right 24V Alternator Supplier for Your Fleet

Procurement decisions at this price point — $120 to $300 per unit across 5,000 to 20,000 annual units — require more than a datasheet comparison. The table below contrasts key supplier attributes relevant to high-volume B2B buyers.

XITU has invested 28 years in alternator manufacturing at a 20,000 m² facility housing over 50 precision machines. Each 24v alternator 150 amp passes computerized load testing across the full RPM curve, thermal endurance at 100 °C under full 150A load, G-force vibration simulation, and 96- to 480-hour salt spray testing. Generic aftermarket units rarely publish thermal endurance data — a meaningful gap when your fleet runs in Siberian winters and Saudi summers.

Buying Guide: How to Procure 24V 150 Amp Alternators in Volume

Where to Source

The XITU B2B site at xitu-auto.com and confirmed ads on Alibaba International are both ways for companies to buy directly from XITU. When you buy directly from the factory, the unit cost is lower, and you can make changes like private labels, different port setups, or protective coatings that are only for marine buyers.

Pricing and Lead Times

It takes between 30 and 60 days to book most of the time. Depending on the port, it will take three to four weeks to make the first order of 100 to 300 units. Then, it will take four to eight weeks to ship by sea. You can use air freight for small pilot batches. When you buy over 1,000 units at once, you can get deals that lock in the price per unit for a certain amount of time each year.

Ordering Process

Within 24 hours, XITU will let you know if the part fits if you send them your Bosch OEM cross-reference number or Volvo application code. It takes five business days to send out three to five sample units so that they can be set up and tried before a full order is placed.

Conclusion

The 150-amp charging unit in a Volvo heavy truck makes sure that it can keep running even in the worst weather. The XITU 24v alternator 150 amp is made to IATF 16949 standards and ships from a factory that makes more than 500,000 units a year. It pairs with more than 25 Bosch and Volvo OEM parts. This unit is a good long-term buy because it has been tried to be stable at idle, is sealed to keep out dust and water, and is priced directly from the factory. It's good for people who are in charge of a regional network for spreading spare parts, a mining fleet in the Urals, or a brand of marine equipment.

FAQ

1. How often should a 24V heavy-duty alternator be replaced?

If you drive on the highway every day, a good charger should last between 150,000 and 200,000 km. Repair times can be cut down to 80,000 to 100,000 km in places with a lot of vibration, like mines or construction sites. Having bearings checked at every big service interval is the most cost-effective way to keep things from breaking down when they're not supposed to.

2. Can I replace a 100A unit with a 150A alternator on the same Volvo truck?

To be sure, the fixing base, the type of pulley, and the wire gage must all be made to work together. The gear arrangement in this unit is the same as the ones that come with Volvo FM, FMX, and FH16 drives. The B+ wire should be changed to 35 mm² so that it can handle the extra power.

3. What are the early signs of alternator failure?

If your dashboard lights go out when the battery is low, your headlights dim when the car is not moving, the battery drains overnight for no reason, or you measure an AC ripple above 100 mV across the battery terminals, you should be very careful. If you hear a grinding sound that changes with the engine RPM, it's likely that a bearing is broken.

4. Does the sealed design work in salt-spray marine environments?

Salt spray was used on the housing for 96 to 480 hours. For naval use, XITU also makes units with housings that don't let sparks fly. These meet ISO 8846 standards and can be used in the engine rooms of business ships.

5. Is 6 months warranty standard for factory-direct orders?

When you buy an item, you have six months to return or exchange it. You can get expert help by email during this time to fix problems and make insurance claims.

Partner with XITU for Your 24V Alternator Supply Chain

XITU has factory-direct 24v alternator 150 amp units that are approved by IATF 16949 and match more than 25 OEM models. Every year, they can make more than 500,000 of them. Our team at xitu-auto.com is ready to confirm compatibility, give you a datasheet, and give you a competitive quote within 24 hours, no matter how many units you need for a pilot project or how many you need every year. Connect with us right away at arisa@xitu-auto.com to begin the search. When XITU ships a 24v alternator 150 amp, they make sure that the quality is good by keeping records that can be checked.
