What Is the Normal 12V Alternator Output and How It Works

Anyone who works with car electrical equipment needs to know about the alternator/12v-alternator-output">12V alternator output. In normal operation, a fully working alternator should make between 13.5 and 14.8 volts, not the nominal 12 volts that its name suggests. This high voltage range makes sure that there is enough charge potential to get around the internal resistance of lead-acid batteries and power the electronics in current cars. Depending on the type of car, the amperage (60A to 200A) shows how much power is needed to keep electrical loads going while the battery's reserves are being restored. Knowing these factors helps people who work in buying choose parts that will work reliably in a variety of situations.

Understanding the Normal 12V Alternator Output

Standard Voltage and Amperage Benchmarks

When professionals look at how well a charging system works, they need to know that the normal voltage runs from 13.5V to 14.8V while the engine is running. This higher potential makes up for the resistance in the circuit and the chemical needs of the battery. Amperage values are very different for different types of vehicles. Most passenger cars need 60A to 100A units, but large trucks and buses need 150A to 200A units to power their air conditioning, other systems, and computer control modules.

The voltage regulator is a key part of keeping things stable. This part checks the battery's health and the load on the electricity all the time and changes the field current to the rotor as needed. When the regulator doesn't work right, drivers may notice anything from flashing panel lights to a completely dead battery. When buying alternators for truck use, procurement teams look at how well they regulate voltage as the most important quality sign.

Operational Factors Influencing Output Stability

During the alternator's working life, a number of factors affect how well the charging system works. The output capacity is directly related to the engine speed; the unit can only deliver its maximum amperage above certain RPM levels, which are usually around 2,000 generator RPM. At idle speeds, power may drop to 40–60% of its maximum level, which could mean that delivery vehicles or equipment that is running at low engine speeds don't get charged enough.

Temperature has a big effect on performance. When internal parts are heated to more than 90°C, efficiency goes down because the turning resistance goes up. Thermal management features in high-quality units include ventilated housings and temperature-compensated controllers that lower the voltage as the battery warms up to keep the liquid from escaping.

Inserting the 12V alternator output into the electrical load demand causes problems because that demand changes all the time. Modern cars with telematics, heated seats, and other high-tech driving support systems can constantly draw 80 to 120A. When loads are higher than the generator can handle, the battery briefly steps in to provide extra power. However, long-term power gaps cause the battery to sulfate early, which shortens its life. Buyers need to make sure that the 12V alternator output matches the real needs of the electrical system, taking into account any extra parts that might be added in the future.

Over thousands of hours of use, component wear slowly lowers power. Wear and tear on the bearings, erosion from brushes, and fouling of the slip rings all lower performance over time. Professional buyers who use predictive maintenance tools check alternators regularly by measuring power curves across the RPM range to find wear and tear before they break down completely.

The Critical Role of Voltage Regulation

Voltage regulators are the smart parts that make charging work consistently. Electronics like engine control units and entertainment systems can be damaged by voltage spikes, but these devices stop them. These days' controllers use microprocessors to change the output based on the temperature, state of charge, and pattern of electrical load.

Adding internal controllers to the generator housing makes installation easier and cuts down on the amount of wiring that needs to be done outside the housing. External regulators are less common in modern designs, but they are better for remanufacturers and custom uses because they are easier to repair. When procurement workers choose parts for different car platforms, they look at how the different configurations affect the total cost of ownership and how hard it is to repair.

How 12V Alternators Work: Core Components and Functionality

Internal Anatomy and Operating Principles

Through electromagnetic induction, the generator changes the mechanical spinning into electricity. The rotor spins inside the stator, making a magnetic field that moves around. When field lines go through the stator windings, they create three-phase alternating current. Before this AC output can be used in car electrical systems that are built for direct current, it needs to be rectified.

Key parts must work together perfectly. Field windings are wrapped around an iron core in the rotor unit. Carbon brushes touching slip rings provide electricity to the windings. The magnetic field needed for induction is made by spinning, pushed by a belt. The stator is fixed inside the body and has three sets of copper windings set up to make phase-separated AC output. Hair-pin binding technology is used in high-quality units. This makes the copper denser, which increases efficiency and lowers internal resistance.

Using six diodes set up in a certain way, the rectifier bridge changes three-phase AC to DC. Each diode only lets current run in one way, which filters the pattern from sinusoidal AC to pulsating DC. The integrity of the diodes directly impacts the quality of the output. One failed diode cuts capacity by about a third and causes too much ripple voltage, which issues with electronic control modules.

Voltage Regulators: Internal vs. External Types

Long-term performance stability depends on how the voltage regulator is designed. Internal regulators are built into the housing of the generator and usually go behind the brush holder unit. This combination makes wiring easier in vehicles and lowers the number of places where things could go wrong because of the surroundings. But replacing them requires taking apart part of the alternator, which makes service more difficult for truck repair workers.

External regulators are connected by special wiring cables, which keep the control electronics away from the alternator's hot surroundings. This setup works well in heavy-duty situations where managing heat can shorten the life of computer parts. Remanufacturers like exterior designs because replacing the regulator doesn't require taking out the alternator, which saves them money on work costs during the rebuilding process.

Premium controllers are different from basic designs because they can adjust for changes in temperature. Modern units have thermistors built in that check the temperature of the battery and lower the charging power when the temperature rises. This keeps the batteries from getting too charged in the summer and raises the voltage when it gets cold, when the batteries need a higher charging potential.

Measuring Alternator Output Accurately

For professional evaluation, the right testing methods and tools must be used. The main troubleshooting tool is a good digital multimeter, which measures voltage directly at the battery terminals while the engine is going at about 2,000 RPM. In normal situations, the readings should stay stable between 13.8V and 14.4V. Values below 13.5V mean the 12V alternator output isn't high enough, and results above 14.8V mean the regulator isn't working right and needs to be fixed right away.

To test for amperage, you need more advanced tools. Carbon pile load tests draw current through a changeable resistance element to mimic the need for electricity. This lets techs check that the generator can deliver the stated amperage. While the tester checks the voltage drop, the alternator works at full power. If the voltage drop is too high when the load is on it, it means that the alternator is breaking down internally.

The most complete test is an oscilloscope study, which shows AC ripple patterns that show diode state. When alternators are healthy, they usually make ripple voltage that is less than 0.5V peak-to-peak. Too much ripple can mean that the diode bridge is breaking down, which causes electromagnetic radiation that affects car networks that are sensitive. Quality-focused buying teams put limits on ripple voltage in supplier deals to protect against rectifier parts that aren't up to par.

Comparing 12V Alternator Outputs: Finding the Right Solution for Your Application

Standard vs. High-Output Alternators

Depending on the application, the right generator must be chosen. Normal passenger cars with simple electrical loads are served by standard output units running from 60A to 100A. These cars can run their lights, ignition, fuel injection, and some features without using more power than their charge systems can handle. Standard alternators are small, which makes them easier to place in engine areas with limited room, which is important for OEM uses.

Commercial cars, emergency vehicles, and tools with a lot of extra systems need high output alternators that can give 150A to 200A. A lot of constant current is needed for ambulances to run medical equipment, utility trucks to power hydraulic systems, and buses to keep the air conditioning in the passenger areas cool. These units have bigger rotor cores, more winding turns, and better cooling systems so they can keep up with high power without breaking down.

Heavy-duty farm and building trucks and vehicles pose special problems. When working with fixed tools, idle-speed performance is very important. For these uses, high-output alternators have changed gear ratios that make the alternator speed higher compared to the engine RPM. This makes the low-speed 12V alternator output better. Fully sealed housings keep dirt and vibrations out of construction equipment that works in dusty, high-vibration areas, which speeds up bearing wear.

Comparative Analysis of Leading Brands

Performance characteristics show that global makers use different engineering methods. Bosch alternators focus on small size and energy efficiency, using advanced fan designs that let the most air flow through housings with vents. Their voltage regulators have complex load reaction systems that keep voltage changes to a minimum when loads change quickly.

Denso works on new developments in material science and uses high-temperature copper metals that keep their conductivity even when they are under a lot of heat stress. Their stator designs make the best use of magnetic flux patterns to get the most power from small spaces. Denso is known for making precision products, and their tight margin control means that performance differences between units are kept to a minimum. This is helpful for buying big fleets of units that need to behave consistently.

Valeo and Remy are experts in high-amperage industrial uses. They design strong bearing systems and reinforced rotor assemblies that can handle high-output functions all the time. Their product lines include customized versions for certain car platforms, which makes OEM integration easier for companies that buy from dedicated providers.

Hitachi and AC Delco both have a lot of extra parts that work with a lot of different car brands and models. Their focus on making products that are as cheap as possible helps them keep their prices low while still meeting quality standards for general replacement uses.

Key Selection Criteria for Procurement Teams

The technical requirements must exactly match the needs of the program. Professionals in procurement check the rated power under normal test settings, which are usually 6,000 alternator RPM and 25°C room temperature. But success in the real world under real working conditions is more important than ratings made in a lab. Asking for performance charts that show amperage output across the full RPM range from 1,500 to 8,000 alternator RPM shows low-speed potential, which is important for delivery trucks in cities and equipment that sits idle for long periods of time.

The operational setting affects the needs of the plan. Extremely hot or cold vehicles need to have their alternators tested under thermal soak conditions to make sure that the output loss stays within acceptable limits when the parts hit steady working temperatures. Tests using salt spray and ASTM B117 standards show that the corrosion protection is good for seaside or winter road salt exposure. According to ISO 16750-3, vibration endurance testing verifies the mechanical stability of equipment used off-road and in buildings.

Total cost of ownership is affected by supplier support skills in a big way. The quality of technical documents, such as troubleshooting and installation tips, cuts down on service time and avoids installation mistakes. The length of the warranty shows how confident the maker is in the product; full coverage for six months to two years shows that the company is committed to quality. When problems happen, having expert support staff on hand who know how to solve specific application problems is very helpful.

Costs are more than just the unit price. The real value can be found by comparing the original cost of purchase to the expected service life, insurance coverage, and possible downtime costs. Buying something based only on the lowest price often leads to early fails, expensive repairs, and unhappy customers. When you build long-term ties with suppliers who care about quality, you get steady product performance and quick service.

Procurement Guide: Sourcing Premium Components from Certified Suppliers

Identifying Reputable Manufacturers and Quality Standards

Professional procurement needs to check the quality processes and production skills. IATF 16949 approval shows that a company meets the quality management standards for the car industry. These standards cover things like production control, tracking, and methods for ongoing growth. This certification makes sure that sellers follow written processes, do regular internal checks, and take corrective steps when problems happen.

Getting ISO 9000 approval is the first step in putting together a quality management system. It's not as strict as IATF standards, but it does show that basic process rules are in place. As a quality guarantee measure, ISO approval is good enough for procurement teams that are looking for parts for non-automotive or aftermarket use.

Strong quality markers are OEM supply agreements. Original equipment makers put suppliers through a lot of tests to make sure they can do their jobs. These tests include facility audits, process capability studies, and ongoing performance tracking. When buyers get their goods from OEM providers, they get manufacturing quality that has been tested in harsh production settings. XITU's history of working with foreign automakers shows that it can do this, giving procurement teams faith in its consistent 12V alternator output and dependability.

Scale of production affects the dependability of supplies. Large and small suppliers alike, XITU finds a good mix between output capacity and flexibility. Established manufacturers keep written methods, calibrated testing tools, and trained quality staff, unlike small workshops that don't have process controls. At the same time, they don't have the rigidly high minimum order amounts that most big companies do. This lets buyers test new markets without taking on too much inventory risk.

Evaluating Price-Performance Ratios and Avoiding Common Pitfalls

Value review needs more than just a look at the unit price; it also needs a full cost study. The slightly higher costs of premium components are worth it because they are more reliable, last longer, and lead to fewer guarantee claims. These things have a big effect on the total cost of ownership, especially for fleet operators and equipment makers whose reputations depend on how long their products last.

Counterfeit parts are a constant problem in the business. Visual inspection isn't enough; advanced fakes can successfully copy packages and the way things look from the outside. To avoid this risk, procurement teams build direct relationships with approved makers and dealers, ask for certificates of conformity, and test products before they come in for review. Checking for the right markings, checking wiring specs, and looking at the quality of the build inside show units that aren't up to par before they are installed.

When quality standards are in place, remanufactured alternators work well for certain types of customers. Professional remanufacturers take cores apart completely, replace worn parts, test them thoroughly, and back up their work with a guarantee. But because remanufacturing methods aren't always the same, quality varies a lot. When looking for refurbished units, buyers should check the licenses of the remanufacturer, learn about how they control their processes, and compare the terms of their warranties.

Testing Equipment for Quality Assurance

By using receiving and checking procedures, you can keep bad parts from getting into your inventory. Digital multimeters are basic testing tools that measure resistance across stator windings and make sure that specs match paperwork. Before installing a rectifier bridge, diode testing features find any problems with it. Buying these troubleshooting tools is a good idea because they cut down on field fails and customer complaints.

Load testing tools let you check the performance in a wide range of areas. Carbon pile tests mimic the electrical loads of a car to make sure that alternators give the correct voltage and amperage. Regular testing during storage finds units that are having problems before they are sent to customers, protecting the brand's image.

Oscilloscopes and other advanced troubleshooting tools can find small performance problems that a simple voltmeter test would miss. By looking at AC ripple patterns, you can find problems with minor diodes and stator windings. These tools require more money to buy, but they are useful for high-volume wholesalers and quality-focused providers who want to stand out by offering better product performance.

Troubleshooting and Maintaining Optimal Charging System Performance

Common Symptoms and Underlying Causes

Dim headlights when the engine is not running mean that the low-speed power is not enough. This problem usually shows up as alternators age and become less efficient inside. When brushes get worn, they cut off field current to the rotor, which makes the magnetic field weaker. Wear on the bearings causes mechanical drag, which means that the engine needs more power to keep the spinning speed the same. When dirt builds up on slip rings, it causes electrical resistance, which lowers the field current even more.

When charging voltage goes below certain amounts, warning lights on the battery turn on. Most of the time, a voltage regulator fails, either letting the voltage rise too high or stopping enough field current from flowing. When the alternator fails completely, the warning light turns on right away and the battery drains quickly. Warnings that come on and off suggest that wire connections are loose, leads are corroded, or interior parts aren't working well.

Problems with electrical systems, like radio interference and sensors that don't work right, are often caused by too much ripple voltage, which is caused by rectifier diodes that have failed. Modern cars have sensitive electronics that can't handle the electromagnetic radiation that comes from charging systems that don't work right. To figure out what's wrong, an oscilloscope study must show that AC voltage components are present in the 12V alternator output.

Corrective Measures and Preventive Maintenance

Fixing problems with the charging system starts with a full examination. Comparing the voltage when the system is not being used and when it is distinguishes between a low-speed output deficiency and a full system failure. By measuring the voltage drop across the charging wires and links, you can find problems with resistance that are often mistaken for alternator breakdowns. A lot of issues that people think are with the generator are actually caused by corroded battery terminals, broken wires, or loose connections that drain the power before it gets to the battery.

When repair is needed, using high-quality parts from approved sources keeps failures from happening again. XITU makes alternators that are made to work in tough conditions. For example, the 12V 60A unit is suitable for Kia Sportage models from 1994 to 2002. This generator is a straight replacement for many Hyundai and Kia part numbers, as well as OEM numbers like BOSCH F032CA1795 and DELCO REMY DRA4198. The design is resistant to heat, vibration, and air pollution because it is made with an aluminum frame and copper windings. Protection that is fully sealed keeps dust and water out, which extends service life in tough working conditions.

Preventive repair makes alternators last a lot longer. Regular checks of the tightness of the belts keep the bearings from having to handle too much weight when the installation is too tight or when the belts are too free. Cleaning the outside of things gets rid of the oil and dirt that builds up and traps heat, raising the temperature inside. Every year, testing the output finds signs of slowly declining performance before it breaks down completely. This lets replacements be planned ahead of time instead of having to be done on the side of the road.

Implementing Predictive Maintenance for Fleet Applications

Structured repair plans are very helpful for people who run fleets of vehicles or are in charge of industrial equipment. By measuring each vehicle's performance at a standard, you can use this information to compare the performance of different vehicles in later tests. Keeping track of voltage and amperage readings over time shows patterns of wear and tear that allow replacements to be planned ahead of time, before problems stop activities.

More and more, telematics systems constantly check how charging systems are working. Modern fleet management platforms keep an eye on the voltage trends of the batteries and let repair staff know when charging problems happen. This real-time tracking stops problems before they happen and chooses the best time to replace something based on its actual state instead of random service intervals.

Standardizing on high-quality parts from dependable sources makes it easier to keep track of inventory and teach technicians. When companies have a lot of different types of vehicles, it can be hard to keep a large collection of parts. It's easier to understand when you buy from makers that offer a wide range of applications. This need is met by XITU's ability to work with platforms for cars, trucks, buses, and construction vehicles. It offers 12V and 24V choices with horizontal and vertical mounting options to fit different installation needs.

Conclusion

When purchasing professionals know the standard 12V alternator output factors, they can choose parts that will work reliably with the electrical system. Between 13.5V and 14.8V of voltage, along with the right amount of power for the job, makes sure that charging goes smoothly in a variety of settings. When evaluating a provider, it is helpful to know how the different parts inside work together, from electromagnetic induction to rectification and voltage control. When you compare normal and high output options from different top brands, you can find performance traits that are useful for certain tasks. Buying from certified makers with well-documented quality systems, thorough testing methods, and quick technical support lowers the total cost of ownership and keeps operations running as smoothly as possible when charging systems fail. Structured repair plans make parts last longer and stop them from breaking down when they're least expected.

FAQ

1. What voltage should a healthy 12V alternator produce?

During regular operation, a unit that is working right makes between 13.5V and 14.8V when tested at the battery terminals with the engine going at about 2,000 RPM. Readings below 13.5V mean the battery can't charge fully, and readings above 14.8V mean the voltage regulator isn't working right. Temperature has a small effect on these numbers. When it's cold, the voltage may be at the higher end of the range, and when it's hot, the 12V alternator output voltage drops a little.

2. How do I know if my alternator output is sufficient?

The most correct evaluation comes from testing under load situations. Using a carbon pile load tester, put 50% of the stated capacity of the electricity load on the system while keeping an eye on the voltage. At 2,000 RPM, this load puts a voltage above 13.2V on healthy units. If the voltage drops below 12.8V, it means that the output isn't enough or that the internal parts are breaking down and need to be replaced.

3. Can I upgrade to a higher output alternator?

It is possible to upgrade as long as the mounting measurements and belt drive setup stay the same. Make sure that the vehicle's wiring harness can handle more power, especially the main charging wire that goes from the generator to the battery. Higher power units make more heat, so they need to be properly ventilated. Professional fitting and proper belt tensioning keep bearings from breaking down too soon.

Partnering with XITU: Your Trusted 12V Alternator Output Supplier

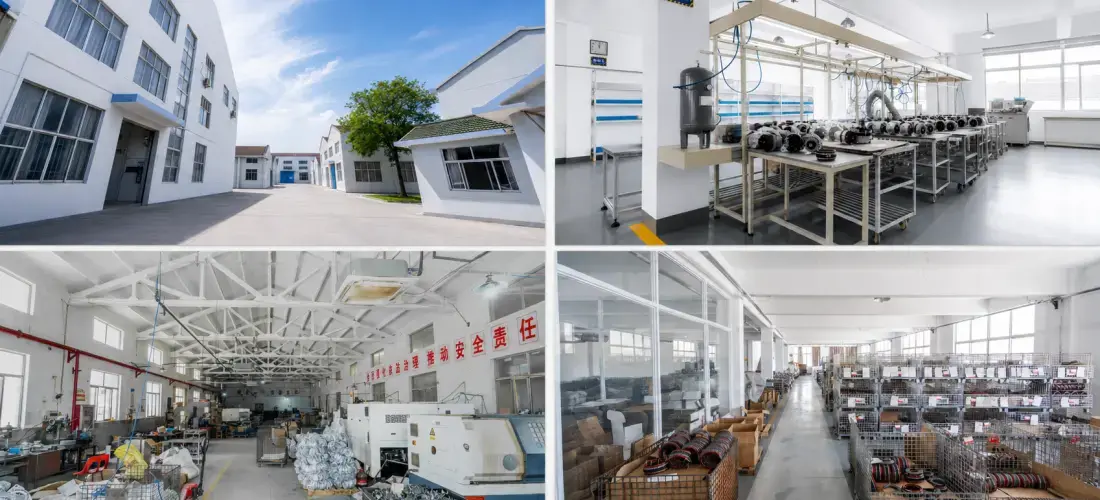

XITU has been making alternators for 28 years and has a lot of in-house research and development (R&D) resources. This lets them make OEM-grade alternators that meet the strict standards of foreign markets. Our ISO 9000-approved factory has strict quality control measures in place during the whole manufacturing process. These include full-load heat run tests, performance curve checks, salt spray corrosion tests, and shaking endurance tests. We have a number of OEM clients in other countries, which shows that we can regularly meet the high standards of the automotive business.

Temperature-compensated voltage controllers in our alternators make sure that the output stays stable even when the operating conditions change. The 12V 60A unit we made for the Kia Sportage shows how much we care about compatibility and dependability—it fits a number of OEM part numbers and provides the stable charging performance that business companies need. We keep wait times between 30 and 60 days and work with well-known transportation companies around the world to make sure safe deliveries around the world. Our six-month guarantee and expert support team provide full after-sales service. Flexible ODM/OEM customization meets the needs of different markets. If you need a reliable 12V alternator output maker that combines quality, speed, and technical know-how, email our team at arisa@xitu-auto.com and let us know what you need.
