What is a super duty alternator?
When your commercial fleet faces unpredictable electrical demands, understanding high-output charging systems becomes critical. Heavy-duty vehicles equipped with hydraulic lifts, medical equipment, or auxiliary lighting require more than standard electrical components. A alternators/super-duty-alternator">super duty alternator represents the specialized solution designed to meet these elevated power requirements, ensuring uninterrupted operation during the most demanding conditions. This guide provides purchasing managers, fleet engineers, and distributors with comprehensive insights into selecting, installing, and sourcing these essential components, covering technical specifications, procurement strategies, and practical installation guidance to support informed B2B decision-making.
Understanding the Super Duty Alternator—A Knowledge Popularization Approach
What Defines a Super Duty Alternator?
There is a high-output part called a super duty alternator that is designed to work with heavy-duty business cars, like Ford F-Series platforms, and other similar industry uses. Unlike most automotive alternators, which only give 80 to 120 amps, these units can handle much higher currents (often between 90 and 400 amps) and are intended to handle heavy electrical loads without lowering the voltage. The main difference is better thermal management, stronger internal parts, and the ability to keep the charging voltage stable even when several high-draw accessories are running at idle engine speeds at the same time.
Key Technical Specifications and Performance Characteristics
High-output alternators are based on a number of important technical factors that procurement workers should look at. Voltage ratings usually range between 12V and 24V, and the amperage capacity is chosen by figuring out the total load on the electrical system. Our XITU 12V 90A type has an 8PK58 pulley design that makes it compatible with Bosch OEM numbers 0124325109 and 3C4510300AA and gives you enterprise-level performance.
Professional-grade units are different from market models because they have better thermal control. Diesel engine compartments can get very hot, but high-quality silicon diodes on heavy-duty heat sinks can handle it. Two cooling fans inside the module also keep it cool when it's running at a high output for a long time. The way the housing is made is very important. Aluminum metal frames are the best at getting rid of heat while still being lightweight, which is important for industrial uses.
Wiring issues turn out to be just as important. Strong electrical links are needed for these alternators so they can handle more current flow without losing any resistance. When adding higher-output units, the "Big 3" upgrade—improving the ground connections between the generator and the battery, the battery and the chassis, and the engine and the chassis—is needed to keep the voltage from dropping and the connections from breaking.
Maintenance Guidelines and Service Life Expectations
When you follow the right repair steps, your alternator will last a lot longer. Checking the tightness of the electrical connections, making sure the belt is taut, and listening for strange noises or too much heat buildup should all be part of regular inspections. The sealed design of high-quality units keeps wetness and dirt out of the internal parts, so they need less upkeep than older open-frame designs.
Under normal business working conditions, the service life runs from 100,000 to 150,000 miles, but this can change a lot depending on the job cycle intensity and environmental factors. Vehicles that work in hot places or that start and stop a lot may have shorter lifespans, so fleet managers need to make sure that they schedule preventative replacements.
Recognizing Failure Symptoms and Early Warning Signs
Finding alternator degradation early keeps you from having to fix your car on the side of the road and keeps expensive electrical parts from getting damaged. Flickering lights, dashboard warning lamp illumination, voltage readings below 13.5V or above 15V during operation, and strange whining or grinding noises from the alternator bearing assembly are all signs that something is wrong. Using special troubleshooting tools to test the battery charge system load gives a clear picture of the alternator's health before it fails completely.
Choosing the Right Super Duty Alternator—A Decision Support Framework
Assessing Your Operational Needs and Load Requirements
An in-depth study of the electrical load is the first step in choosing the right high-output generator. Find out how much current all the electrical devices that can work at the same time need. This includes HVAC systems, extra lighting, hydraulic pumps, communication equipment, and any aftermarket adds. This baseline number should help you choose the minimum alternator capacity. It's also a good idea to leave a 30% margin of error to account for charging needs of older batteries and new equipment in the future.
Environmental operating conditions have a big effect on the choice of product. When vehicles are used in places with extreme temperatures, high humidity, or dusty construction sites, they need stronger sealing requirements and higher protection ratings. Because our XITU alternators are fully sealed and protected against dust and water, they work well in these tough working conditions.
Comparing Super Duty, OEM, and Heavy Duty Alternators
Knowing the differences between the different types of alternators helps buying teams make the right choices. OEM alternators are equipment that comes with a car and meets basic requirements. However, they often don't have enough power to add a lot of extra equipment. heavy-duty alternators give you a moderate boost in output that's good for light commercial use, while super duty alternators give you the most current capacity you need for heavy-duty work.
Compatibility is more than just the size of the mounting holes. Pulley ratios change how charging works. Higher ratios boost output at lower engine speeds, which is good for vehicles that need a lot of electricity when they're not running. Our 8PK58 pulley configuration strikes a good mix between low-speed charging performance and high-RPM durability, which is good for business fleet uses that need to work in a variety of situations.
Evaluating Reputable Brands and Quality Indicators
There are many makers of alternators, and their quality standards vary. Well-known names like Bosch, Denso, and Valeo have strong reputations that come from decades of working with original equipment manufacturers (OEMs) and strict quality control procedures. When looking at providers, IATF 16949 certification shows that they have quality management systems that meet car standards, while ISO 9001 certification shows that they have more controls over the whole manufacturing process.

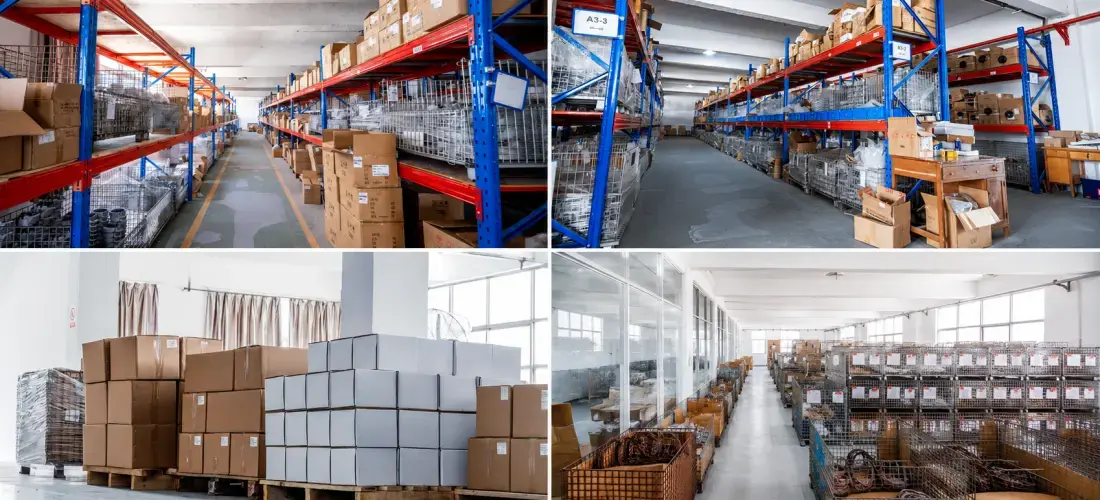

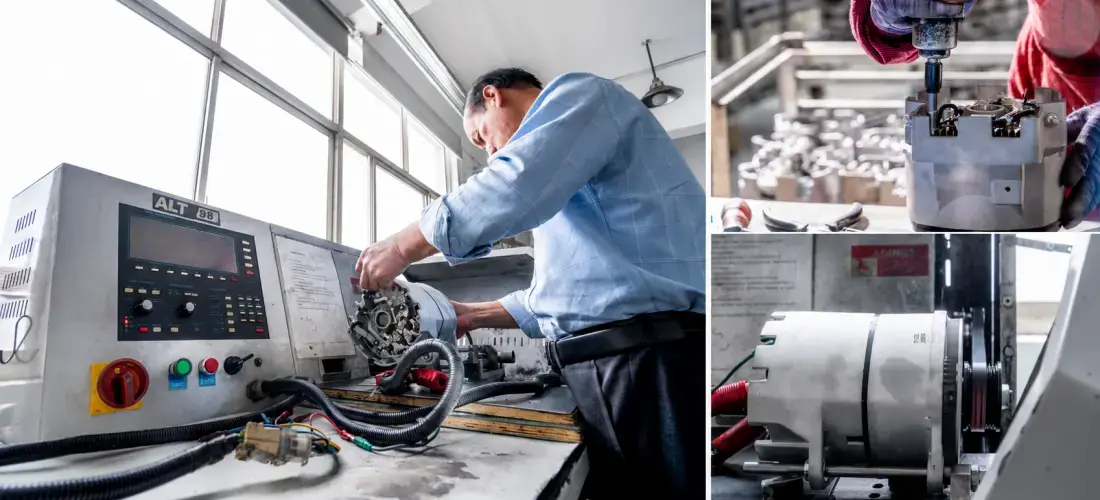

Wuxi Xitu Industry and Trade Co., Ltd. has been making things for 28 years and is IATF 16949 certified. They run a 20,000-square-meter factory with more than 50 high-precision testing tools. Our yearly production capacity is more than 500,000 units, and we offer OEM-level quality with the responsiveness and flexibility of a medium-sized supplier. This way, you can avoid the prohibitive minimum order quantities that come with big manufacturers while still getting the same high quality standards.
Key Procurement Metrics for Decision Making
The main things that are used to decide what to buy are performance dependability, guarantee coverage, and total cost of ownership. Manufacturers put a warranty on their products to show that they think they will last. For example, our six-month guarantee shows that we stand behind our quality and protects buyers' operations. Besides the initial purchase price, you should also think about things like freight costs, duty rates for buying things from other countries, and possible customs delays that could affect the total landing cost.
Professional sellers are different from commodity dealers in that they offer technical help and service after the sale. When problems happen, having access to installation instructions, help with troubleshooting, and new parts reduces the impact on operations. Our expert team offers full support, including wiring blueprints, installation instructions, and quick contact to quickly answer questions from the field.
Installation and Wiring—Practical Guide for Engineers and Technicians
Understanding Wiring Fundamentals and System Integration
The alternator will work well, and the system will last a long time if the electrical components are properly connected. The charging system has three main circuits: the main output cable connects the alternator to the battery; the ground circuit gives the alternator a way to connect back to the chassis; and the voltage sensing wire lets the internal regulator accurately check the system voltage. To keep resistance losses as low as possible, each circuit needs to choose the right wire gauge based on how much current it needs to carry and the length of the cable.
In high-vibration commercial truck settings, connection security is very important. When it comes to durability, crimped and soldered ends are better than simple crimped connections. Heat-shrink tubing keeps connections dry. Where the alternator is mounted affects how well it cools. Enough airflow around the unit keeps it from getting too hot, which speeds up component wear.
Step-by-Step Installation Procedure
Successful alternator replacement begins with proper preparation. By disconnecting the negative lead of the battery, you can avoid short circuits during installation. Using the right tension release tools, take off the serpentine belt. Then, separate all the electrical connections from the original generator and take pictures of where the connections are to make putting it back together easier. Take off the mounting bolts and take out the old unit. Before putting the new one in, check the mounting brackets for damage or wear that needs to be fixed.
Place the new alternator on the mounting frames and start the bolts by hand to make sure they are properly engaged with the threads before tightening them to the manufacturer's specs. Reconnect the electrical connections in the way that was written down in the original setup. Make sure that the terminals are clean and that the force on threaded connections is correct. Install the serpentine belt by following the right path, make sure the tension is right, and make sure all the pulleys on the belt-driven accessories are lined up correctly.
Once the technical fitting is done, connect the battery again and make sure the charging system works. Start the engine and check the voltage at the battery connections. In a few seconds, the numbers should settle between 13.5V and 14.5V. Turn on high-draw electrical loads like the headlights, HVAC, and other extras while keeping an eye on the voltage to make sure the alternator keeps up a good charging voltage even when the system is fully loaded.
Troubleshooting Common Installation Challenges
Even setups that are done correctly sometimes have problems that need to be diagnosed. Even if everything is installed correctly, charging outputs that aren't high enough are often caused by power distribution circuits with too thin of wires, especially when upgrading to much higher output units. Testing for voltage drop between the alternator's output and the positive end of the battery shows resistance issues that need to be fixed by upgrading the wires.
Any strange noises after installation are usually a sign of problems with the belt tension or the alignment of the pulleys. Make sure the tension on the belt is right, and use a straightedge to check the alignment of all the pulleys on all the parts that are driven by the belt. If a new generator makes noise, it means that there was a problem during production or during shipping, and it needs to be replaced right away to avoid breaking down too soon.
Problems with charging or voltage control that come and go are often caused by bad ground connections or voltage sense circuits that are broken. Clean all ground connection points down to bare metal, put dielectric grease on them, and make sure the mechanical link is tight. Check the integrity of the voltage sensor wire and look for damage that might have happened from touching hot exhaust parts or sharp sheet metal edges. This also applies to the super duty alternator, which can exhibit intermittent charging issues under the same conditions.
Procurement Process and Market Insights for Buyers
Available Purchasing Channels and Distribution Networks
Buying alternators for businesses can be done in a number of different ways, each with its own benefits. Direct relationships with manufacturers offer the best prices for large orders and allow for customization, but they usually come with higher minimum order quantities and longer lead times. Regional wholesalers let you buy smaller amounts and get them faster, but they charge more per unit because they add a markup for distribution.
Online B2B platforms make global sourcing easier by putting buyers in touch with producers in different parts of the world. These platforms make it easier to communicate, keep transactions safe, and often come with buyer safety programs that lower the risks of buying things internationally. When buying from Chinese manufacturers, it's easier to deal with quality issues that have made cross-border purchases more difficult in the past if you work with well-known suppliers who have the right certifications.
Understanding Pricing Structures and Cost Influences
The price of an alternator is based on more than just how much it costs to make. Price is directly related to output capacity. Units with higher amperage needs more copper wrapping material, bigger diodes, and better cooling systems, all of which raise the cost of production. Brand reputation leads to higher prices, but buyers should think about whether the perceived value of the brand justifies big price differences when comparing products that work the same and meet the same technical requirements.
Through economies of scale in manufacturing and transportation, the number of units ordered has a big effect on the price per unit. Our flexible minimum order amounts let buyers try out new goods or markets without taking on the financial risk that comes with making big commitments. Lead times for large orders are usually between 30 and 60 days. This is done to balance the efficiency of production ordering with quick shipping that supports just-in-time inventory management.
Costs of international shipping and import taxes have a big effect on figuring out the final cost. Ocean freight is the most cost-effective way to ship large amounts of goods, while air freight is faster and more expensive but can meet urgent needs. We work with well-known logistics companies around the world to make sure that all of our packages are shipped safely, can be tracked, and are delivered on time.
Evaluating Suppliers and Building Partnerships
Choosing a supplier is more than just looking at prices and product specs. It also involves looking at how well the supplier can run your business. Factory audit records back up claims about production capacity and quality control processes. Certification paperwork shows that the factory meets all the standards for its industry. Our IATF 16949 certification shows that we have automotive-grade quality management systems, which is a big deal for buyers who have had problems with inconsistent quality from workshops that aren't certified.
Production capacity and the ability to grow are very important for delivery businesses that want to grow. Suppliers who can't handle higher volumes make it hard for businesses to grow, while suppliers who have extra capacity make sure that supply stays steady even when demand changes. Our ability to produce 500,000 units per year allows us to keep up with large increases in customer demand while maintaining consistent quality and delivery performance.
Professional manufacturers are different from transactional suppliers in how quickly they respond to communication requests and how well they can help with technical issues. Time zone differences and language barriers make foreign purchasing more difficult. It is important for suppliers to be responsive in order to answer questions, solve problems, and coordinate operations well. Our expert export team communicates quickly in English and offers full technology support, which makes it easy for people working on projects around the world to work together.
Conclusion
High-output alternators are important parts that make it possible for business cars that use a lot of electricity to run reliably. Fleet managers and procurement workers can make smart choices that improve vehicle downtime and electrical system reliability by knowing technical specs, how to choose the right parts, and how to install them. There are many choices when it comes to quality levels, pricing, and suppliers' abilities. Picking partners with the right certifications, production capacity, and support infrastructure gives you a competitive edge by ensuring consistent product quality and on-time deliveries. We have been making things for 28 years, are IATF 16949 certified, and are flexible when it comes to meeting customer needs. This makes us a reliable choice for companies that need quality parts but don't want the restrictions that come with working with big makers. For demanding applications that require even more electrical output, a super duty alternator is an excellent upgrade option, delivering enhanced performance and durability under heavy electrical loads.
FAQ
1. How Does Output Differ from Standard Alternators?
High-output units can handle a lot more amperage—often 90A to 400A instead of the standard 80A to 120A—so you can use extra equipment without draining the battery. They keep the voltage fixed even when there is a lot of electrical load, which would damage sensitive electronic components if the voltage dropped.
2. Can I Upgrade My Existing Alternator to Higher Output?
It is still possible to upgrade as long as the new unit fits the mounting arrangements and gear requirements. For installations with higher outputs, it's important to make sure that the existing wiring can safely handle the extra current flow. For large increases in amperage, the "Big 3" wiring upgrade is usually needed to keep the connection from overheating and voltage losses.
3. What Practices Extend Service Life?
Checking the tightness of the belt on a regular basis, keeping the electrical lines clean, and keeping an eye out for strange noises or too much heat are all important maintenance tasks. Regularly driving the vehicle stops internal corrosion caused by moisture buildup, and stopping it from running at full power for long periods of time lowers the thermal stress that speeds up component breakdown.
Partner with XITU for Reliable Super Duty Alternator Supply
Dependable commercial vehicle operation starts with high-quality electrical parts. We at XITU make high-output alternators for tough jobs in a facility that is IATF 16949 certified and has strict quality control to make sure they work like OEM parts. Our 12V 90A units are fully compatible with Bosch standards and have been shown to work reliably on Ford industrial platforms. They come with all-new parts, an aluminum housing with copper windings, and a full six-month guarantee.
We know the problems that wholesalers and fleet operators have when they try to buy things: inconsistent quality from small workshops, huge minimum orders from big makers, and unpredictable delivery times all make it hard to do business and grow. Our medium-sized business has a stable production capacity and quick service, so we can handle a wide range of order sizes while keeping wait times between 30 and 60 days and delivering on time every time.
Check out our full selection of starting and charging system parts, or get in touch with our expert team for help with a particular project. Send an email to arisa@xitu-auto.com to get in touch with experienced super duty alternator providers who will understand your working needs and be able to offer custom solutions that will help your business reach its goals. You can find detailed technical specifications, information on compatibility, and procurement resources at xituguojimaoyi.aixdb.cn. These resources are meant to make your sourcing decisions easier.
References
1. "Automotive Electrical Systems: Principles and Practice," Society of Automotive Engineers Technical Paper Series, 2021.
2. Miller, R. H., "Heavy-Duty Vehicle Electrical System Design," Commercial Vehicle Engineering Journal, Vol. 15, 2020.
3. "IATF 16949:2016 Quality Management Systems – Requirements for Automotive Production," International Automotive Task Force Standards Publication, 2016.
4. Chen, L. and Zhang, W., "Thermal Management in High-Output Automotive Alternators," Journal of Automotive Engineering and Technology, Vol. 8, No. 3, 2022.
5. "Fleet Maintenance Best Practices for Commercial Vehicles," American Trucking Associations Maintenance Council Guidelines, 2023.
6. Davidson, P., "Electrical Load Analysis Methods for Commercial Vehicle Specification," Fleet Equipment Magazine Technical Reference Guide, 2022.
