Automotive Alternator Types Explained: Design Evolution
If you source charging system components for commercial fleets, understanding howalternators%20&type=products"> auto electric alternators have changed over the past few decades directly affects your procurement decisions. Today's alternators are not the same devices that powered vehicles thirty years ago. Design shifts in materials, electronics, and thermal management have produced units that deliver higher output, longer service life, and tighter voltage control than earlier generations ever could. This article walks through that evolution and shows how it applies to real buying decisions.

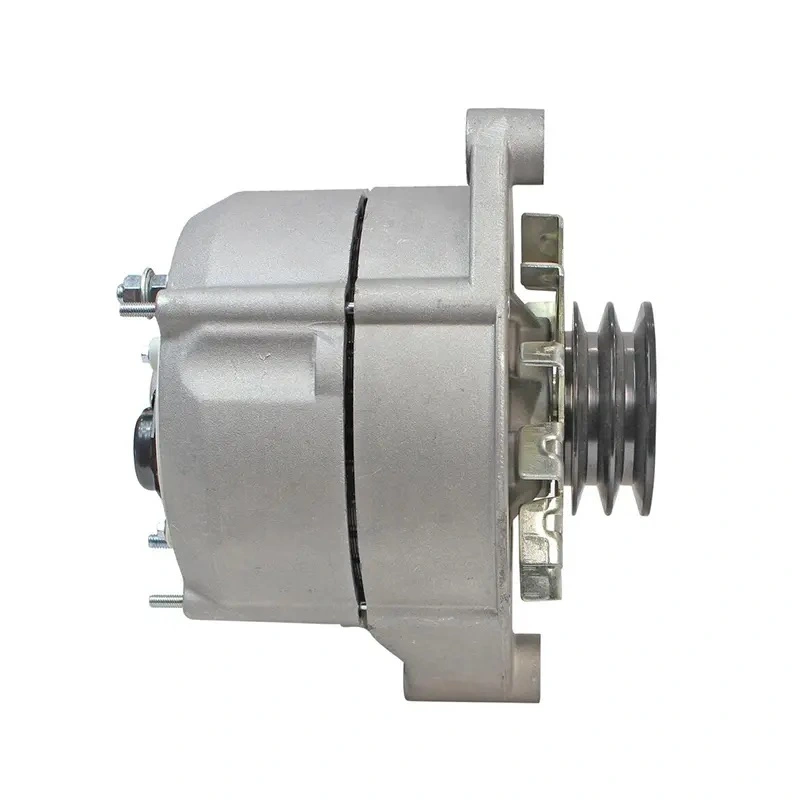

Understanding Automotive Alternator Fundamentals
What an Alternator Actually Does
When a motor belt turns, it gives off kinetic energy that is turned into alternating current by an alternator. This alternating current is then turned into direct current by a diode rectifier. The DC power runs the gadgets in the car and charges the battery at the same time. Batteries should be able to hold a lot of power, but if the charging unit doesn't work right, they will die in minutes.
Key Internal Components
There are four things that make auto electric alternators work well. The rotor makes a magnetic field that spins. Copper wires in the stator are what make electricity. The diode converter changes the AC to DC. The voltage regulator always leaves the output at a level between 13.8V and 14.8V when 12V systems are turned on. It stays between 27.2V and 28.4V for 24V heavy-duty rigs. Each part of the unit has to meet strict requirements in order for it to work well in service.
Voltage Ratings, Lifespan, and Maintenance
A lot of personal cars have 12V systems, but most vans, trucks, and work cars have 24V systems. If everything goes as planned, a professional-made alternator should last between 150,000 and 250,000 miles. As part of practical maintenance, the tension of the belt, the soundness of the connections, and the output on a bench at different RPM levels should all be checked regularly. This is done to find voltage regulator or diode degradation early on.
| Component | Function | Common Failure Sign |
|---|---|---|
| Rotor | Creates rotating magnetic field | Overheating, output drop |
| Stator | Produces AC electrical output | Burning smell, low amperage |
| Diode Rectifier | Converts AC to DC | Battery drain, whining noise |
| Voltage Regulator | Stabilizes output voltage | Overcharging or undercharging |
Evolution of Automotive Alternator Types: Design and Performance
Limitations of Early Designs
In the 1960s and 1970s, basic claw-pole alternators made just enough power to start and light the car. But their low-RPM output wasn't very good, and they had trouble with the extra electrical loads that came with newer car electronics. The way the heat was handled wasn't very good, and brush wear made heavy duty cycles happen more quickly.
Variable Speed Drive and High-Output Designs
Variable Speed Drive alternators can make power even when the engine isn't running because they don't depend on the engine's RPM. Heavy-duty high-output units can now take up to 300A of power. Most modern commercial vehicles have GPS tracking, refrigeration systems, advanced driver assistance systems, and large lighting arrays that need power. These designs meet those needs.
Material and Electronics Advances
Auto electric alternators these days are light and good at getting rid of heat because they have copper windings that conduct electricity well and metal housings. Integrated solid-state voltage regulators were used instead of mechanical voltage regulators to cut down on adjustment drift and improve calibration consistency. Some new designs use LIN or CAN bus standards to talk to the car's ECU and change the charging rate based on the engine's load and the battery's temperature. This saves gas.
Comparing Alternator Types and Brands for Optimal Procurement Decisions
OEM Versus Aftermarket
Since OEM alternators are made to fit the original car, you can be sure they will fit and keep track of their performance data. The main issue with OEM parts is that they cost a lot more than good aftermarket parts, usually 40% to 70% more. When made with IATF 16949 quality standards in mind, aftermarket units from approved manufacturers can work just as well as OEM units. Because of this, they are the best choice for running a company and distributing goods in bulk.
Major Global Brands
There are a lot of industrial vehicles in Europe, and Bosch makes a lot of them. Platforms from DAF, Mercedes-Benz, and MAN all use Bosch OEM reference numbers. Most of the reliable passenger cars in Asia and North America are made by Denso. Valeo is known for making small electronics that work well with modern cars and light trucks. It's important to make sure that the voltage, amperage output, setting direction, and OEM cross-reference numbers all match up before you choose a brand. If the OEM number is compared to a Bosch reference number like 0120689530 or 0120689535, there is no fitment risk for heavy-duty busses and trucks. People in charge of buying things for a mixed fleet can make sure the charging and starting system is of good quality by getting both from the same IATF 16949-certified maker.
Selecting the Right Unit for Your Application
Before you buy, you can choose between a high or moderate unit cost, an exact fit guaranty or a cross-reference check. The lead time can vary but is usually between 30 and 60 days, a low or high minimum order quantity, and OEM spec or IATF 16949/ISO 9001 quality certification.
| Procurement Factor | OEM | Certified Aftermarket |
|---|---|---|
| Unit Cost | High | Moderate |
| Fit Guarantee | Exact | Cross-reference verified |
| Lead Time | Variable | 30–60 days typical |
| MOQ Flexibility | Low | Higher flexibility |
| Quality Certification | OEM spec | IATF 16949 / ISO 9001 |
Common Problems and Testing Methods for Auto Electric Alternators
Warning Signs to Watch For
Before the whole charging system breaks down, there are three reliable signs that something is wrong. If the dashboard light for the battery comes on while the car is running, it means that the power output is not normal. If the headlights dim when the bill goes up, it means the unit can't handle the extra power. You can use an oscilloscope to confirm that a whining or grinding sound means that a bearing is wearing out or a rectifier diode is failing.
Root Causes of Premature Failure
Brush wear shortens the service life of brushed designs when they are used in high-cycle tasks. If the voltage regulator isn't working right, the battery either gets too charged, which hurts the cells, or too charged, which wears out the cells over time. If a diode in the rectifier fails, it makes the DC output have AC ripple. This puts stress on the electronics in the car, which usually shows up first as strange behavior in the cluster of gages.
Step-by-Step Diagnostic Procedure
For field diagnosis to work well with auto electric alternators, there needs to be a clear order. First, find the battery's voltage when it's not doing anything. A good 12V machine should have at least 12.6V. Start the engine and look at what's coming out of the generator's B+ line. The voltage should be between 13.8V and 14.8V on a good unit. Third, put on the lights and AC to add a load. Then, make sure the voltage stays above 13.5V. Fourth, look for AC flicker above 50mV on a monitor. This means the diode didn't work. A unit must be tried on a bench or changed if it fails any step.
Procurement and Supply Chain Considerations for Auto Electric Alternators
Sourcing Strategy and Pricing
Quality differences from small-workshop suppliers aren't as big when you buy in bulk from a company that has IATF 16949 certification and a stable annual production capacity. There is more to ask than just standard sheets when you are negotiating. You should also ask for written test data and unit prices. If a supplier can show you bench test plots of current vs. RPM, that means they have good process control. This protects your supply chain from field returns.
A producer of supply-chain-ready alternators is not the same as a seller of goods in the following ways:
- Certified quality systems: IATF 16949 and ISO 9001 certification ensure documented process control from raw material selection through finished-goods inspection, not just end-of-line spot checks.
- Flexible production capacity: A factory producing 500,000 units annually can accommodate mid-volume orders without forcing buyers into high MOQs, reducing the risk of testing new markets or product lines.
- Matched product range: Sourcing starters and alternators from the same manufacturer ensures electrical system compatibility and simplifies warranty claims across both component types.
- Thermal and vibration testing: Units cycled between -40°C and +125°C during thermal shock testing and subjected to dynamic rotor balancing arrive verified for the harshest under-hood conditions.
IATF 16949 and ISO 9001 certification make sure that the whole process is recorded, from picking out the raw materials to checking the finished goods. There aren't just quick checks at the end of the line.
This means that a factory that makes 500,000 units a year can handle orders of a moderate size without requiring buyers to meet high MOQs. It's now safer to try out new markets or product lines.
By buying starters and alternators from the same company, you can be sure that the electrical system will work with both types of parts. It's also easier to make warranty claims.While the units were being tested for thermal shock, they were heated and cooled between -40°C and +125°C. Their blades were also dynamically adjusted to make sure they would work in the harshest conditions inside.
Logistics and Delivery Reliability
When you buy from suppliers who meet all four criteria, your total cost of ownership will go down because fewer warranty claims will be made, audits will be easier, and problems will be fixed faster.
Warranty and Post-Sale Support
You should get a commercial alternator that comes with at least a six-month warranty and technical support when you buy it. When you buy something, it's easier to handle paperwork after the sale if the supplier gives you clear installation instructions and replacement steps for problems that aren't caused by people. Make sure you know if you need to send the original unit back to get a guaranty or if the seller will take photos instead, which will be faster.
Conclusion
Auto electric alternators used to be simple mechanical generators, but now they are handled electrically and are built to keep the voltage level stable in hot and harsh circumstances. When procurement teams understand that progression, they can set the right unit, get a good idea of what suppliers can do, and avoid the quality issues that often happen when they only look at price. Whether your fleet is made up of DAF 95 trucks, Scania busses, or Mercedes-Benz industrial vehicles, the best way to make sure they keep running is to get the right charger from a company with well-known quality systems.
FAQ
1. Why does my alternator produce a whining noise?
A failing diode in the rectifier or worn-out bearings most commonly causes this. An oscilloscope test measuring AC ripple above 50mV in the DC output confirms rectifier diode failure. Bearing noise typically increases with engine RPM and worsens under electrical load.
2. Can I fit a higher-amperage alternator without upgrading the wiring?
No. Increasing amperage output without upgrading the main battery cable, chassis ground, and alternator output wire creates a fire risk. The full "Big 3" wiring upgrade is required before installing a high-output unit.
3. How do smart alternators differ from standard models?
Smart alternators communicate with the vehicle ECU via LIN or CAN bus to adjust charging rates based on battery temperature, state of charge, and engine load. This reduces alternator drag during acceleration, lowering fuel consumption by an estimated 1% to 3% in mixed-cycle operation.
4. What causes early alternator failure in off-road or construction vehicles?
Mud, dust, and water ingress damages brushes and slip rings in unsealed units. Fully sealed, dust- and water-resistant designs with rated protection are the specified choice for construction and off-road applications.
5. What is the expected service life of a professional-grade unit?
Professional-grade alternators are designed for 150,000 to 250,000 miles of service life, subject to environmental conditions, maintenance frequency, and electrical load cycles.
Partner With XITU for Proven Auto Electric Alternators
Heavy-duty commercial vehicles based on the DAF 95, Scania bus, Mercedes-Benz, and MAN platforms can buy certified auto electric alternators from XITU. You can use these alternators with the Bosch OEM numbers 0120689530 and 0120689535. Because XITU is approved by IATF 16949, makes 500,000 units a year, and has a lead time of 30 to 60 days, it can meet OEM quality standards without having to meet large-factory minimum orders. Now is the time to go to xitu-auto.com or email us at arisa@xitu-auto.com to get specs or a buying advice.
