24 Volt Alternator 80 Amp: Complete Buying Guide for Heavy-Duty Vehicles
Selecting the right alternators/24-volt-alternator-80-amp">24 volt alternator 80 amp can mean the difference between continuous operation and costly downtime in your heavy-duty equipment. This specialized electromechanical device delivers a continuous 80-ampere output within 24V electrical architectures, addressing critical challenges such as charging deficits during low-idle periods, electrical instability under thermal stress, and premature component failures in high-vibration environments. When procuring electrical components for industrial machinery like excavators, construction equipment, or commercial vehicles, understanding the balance between power capacity, thermal management, and long-term reliability directly influences your total cost of ownership and operational efficiency.
Understanding the 24 Volt Alternator 80 Amp
What Makes This Configuration Essential for Industrial Equipment
A 24-volt alternator's main job is to use electromagnetic induction to change the mechanical energy from the engine's rotor into an electric current. The rotor spins inside a stator assembly with three-phase copper windings. This makes alternating current, which flows through a rectifier bridge to make direct current that is stable. An integrated voltage regulator keeps the output between 27.8V and 28.6V, which makes sure that your battery bank is charged properly without overcharging it.
This particular power level is a good compromise. Modern telematics systems, GPS tracking, hydraulic valve controls, and extra lights can all use the 24-volt alternator's 80-Amp capacity without putting too much stress on the serpentine belt system. This amount of output is needed by machines on building sites, in mines, and in farming because their electrical loads are much higher than those of passenger cars.
Core Advantages for Heavy-Duty Applications
Industrial-grade alternators are designed to solve real problems in the workplace. Our 24-volt alternator 80 amp keeps putting out the same amount of power even when the engine is idling at 1,200 RPM. This keeps the voltage from dropping, which can damage electronic control units or make instrument panels dim. Modern multi-ribbed belts work well with the 8PK pulley arrangement, which keeps the belt from slipping and increases its life.
Professional units are different from consumer-grade ones because of how they handle heat. Class H copper windings can handle temperatures up to 180°C, and the die-cast metal case with IP54 protection keeps dust and water out. Heavy-duty sealed bearings can handle both axial and radial loads, and they keep working even when tractors and other earth-moving equipment are constantly vibrating.
Recognizing Early Warning Signs of Alternator Failure
Finding symptoms before they become a complete failure is the first step in proactive maintenance. Low-speed output problems are indicated by instrument lights that dim when the engine is not running. Strange whining or grinding sounds are a sign that the bearings are wearing out. When battery warning lights flash on and off, it's usually because the voltage regulator is broken or the electrical connections are bad.
Testing backs up what people thought. Less charging power is shown by a multimeter reading below 27V at 2,000 RPM under load. If the AC ripple voltage at the battery terminals is more than 0.5V AC, it means that diodes in the rectifier bridge are failing. If you notice these signs early, you can keep batteries and sensitive electronic parts from getting worse.
Typical Vehicle Applications Across Industries
Construction tools are the main type of product that this market covers. Doosan 500LC-V excavators, Caterpillar wheel loaders, and Komatsu bulldozers all use strong 24V systems to run their computer controls and hydraulic pumps. This voltage standard is used for a lot of the electrical parts on farm equipment like combine harvesters and big trucks.
These 24-Volt Alternator 80-amper unit are also important for commercial transportation. 24V designs are used by city busses, delivery trucks that can carry more than 26,000 pounds, and specialized vehicles like cement mixers. These units are used as main power sources in generator sets and industrial pumping stations, showing that they can be used for more than just mobile devices.
Installation, Wiring & Troubleshooting Guide
Pre-Installation Verification and Safety Protocols
Before taking off the old 24-volt alternator 80 amp, make sure both battery cables are disconnected. Always disconnect the negative terminal first to avoid getting an electric shock. Take pictures of the current wiring setup and make notes of where the main output line, voltage sense wire, and ignition signal link are located. Check that the pattern on the replacement unit matches the pattern on the mounting bracket. SAE J180 standards make sure that they are compatible, but checking the bolt hole spacing saves time during installation.
Check the serpentine belt for holes, cracks, or fraying. A worn belt can't move enough power and will slip when it's loaded, which makes the 24-Volt Alternator 80-amper work less well. Use a calibrated gauge to check the tension of the belt. For the 8PK configuration, the right amount of force is usually 110 to 140 pounds. Check all of the electrical connections for rust, which raises the resistance and lowers the charging efficiency.
Mounting and Electrical Connection Procedures
Place the 24-volt alternator 80 amp on the mounting plate so that the hinge and tensioner bolts are in the same place. First, thread the bolts by hand to avoid cross-threading. Then, torque them to the manufacturer's specifications, which are usually 25 to 30 ft-lbs for the pivot bolt and 15 to 20 ft-lbs for the adjustment brackets. Follow the engine's belt diagram to route the serpentine belt. Make sure it engages with all of the pulleys correctly before adding force.
Put the right-sized nut on the main output wire and connect it to the battery terminal on the 24-Volt Alternator 80-Amp case. Connect the voltage sense wire to the correct contact. This small wire lets the regulator make up for voltage drops in the wiring harness. When you turn the key, the ignition or field wire goes to the rotor and turns it on. Make sure that all of the connections are tight and that the insulation is right.
Performance Testing and Common Troubleshooting Steps
Once the batteries are back in place and the engine is running at 1,500 RPM, check the voltage at the battery connections. A 24-volt alternator 80 amp that is working properly makes 28.0 to 28.4 V when there is no load on it. Turn on any electrical add-ons, like lights, temperature control, and other devices, and then check the voltage again. Even when the load is at its highest, the reading should stay above 27.5V.
If the voltage stays below 27V, make sure the belt is tight and that none of the links are open. Check the 24-Volt Alternator 80-Amp case with an infrared thermometer. Temperatures above 200°F point to problems inside, such as shorted windings or worn-out bearings. Check the resistance between the output terminal and ground. If the reading is less than infinite, it means that the unit's grounded winding needs to be replaced. Analyzing an oscilloscope shows patterns of AC ripples that show which diodes in the rectifier circuit are failing.
Comparing 24 Volt Alternator 80 Amp with Other Alternatives
Voltage System Differences: 12V vs. 24V Architectures
For technical reasons, companies that make heavy equipment chose 24-volt systems. When the voltage is doubled, the current flow is cut in half while the power is kept the same. This lets smaller gage wiring be used, which saves weight and money. Starter motors work better at 24V because they can turn over big diesel engines with less current. The lower current also keeps the voltage drop as low as possible along long wire runs that are popular in trucks and building equipment.
In order to switch from 12V to 24V systems, the batteries, starter, lights, and all devices must all be replaced. The money spent only makes sense when new equipment is being built or when the whole building is being fixed up. For 24V machines that are already in use, keeping the correct voltage standard makes sure that all factory-installed parts will work.
Amperage Capacity Considerations: 60A Through 120A Options
A 60-amp alternator works well with equipment that doesn't need many electrical add-ons because it charges enough for basic lights and engine settings. By switching to a 24-volt alternator 80 amp, current communications, work lights, and heating systems can be used without the power being constantly at full capacity. Higher-output 100-amp and 120-amp units power specialized machinery with a lot of hydraulic valve banks, multiple radio systems, or extra power outlets.
When you run any alternator close to its recommended maximum for long periods of time, the heat stress shortens the life of the parts. With our 24-Volt Alternator 80-Amp specification, most heavy equipment can use 50 to 60 amps while running normally, leaving a 25 to 30 percent capacity reserve. This extra layer stops thermal decay and provides surge capacity when many devices turn on at the same time.
Design Trade-offs: Compact vs. Heavy-Duty Construction
To cut down on weight and cost, lightweight alternators have housings made of lighter materials and gears that are smaller. These units work fine in controlled settings, but they break down quickly when they are subject to constant vibration, dust, and changes in temperature. Industrial-grade construction includes sealed rectifier units, strengthened mounting ears, and bearings that are too big for the job site.
The difference in weight, which is usually only two to three kilograms, is almost invisible in a 20-ton excavator, but it has a big effect on the 24-volt alternator 80 amps' life. Die-cast aluminum housings get rid of heat better than stamped steel ones, and quality bearing seals keep out dirt and other things that cause wear to happen too quickly. These choices about how the 24-Volt Alternator 80-Amp is made affect whether it needs to be replaced every two years or lasts for five years or more.
Procurement Guide: How to Buy the Best 24 Volt Alternator 80 Amp
Essential Quality Criteria for B2B Purchasing
Warranty coverage shows that the company that made the product is sure that it will last. Industrial-grade 24-Volt Alternator 80-Amp units come with contracts that last between six months and a year, while standard aftermarket alternators only last 90 days. Longer guarantee terms are linked to better component selection and strict quality testing. Support after the sale is just as important—suppliers who can help with technology issues reduce downtime when problems happen.
Getting IATF 16949 certification shows that the ways things are made meet the quality standards of the automotive industry. For this certification, there must be written procedures for inspecting incoming materials, testing while they are being made, and final validation. Suppliers who don't have this credential often don't have the process controls they need to make sure that the quality of big production runs is always the same. Before you place a bulk order, make sure you see proof of testing for salt spray, thermal stress, and electromagnetic compatibility.
Evaluating Established Brands and OEM Compatibility
Delco Remy built its name by providing original equipment makers with a lot of cross-reference data for replacement uses for many years. Bosch units have advanced technology for controlling power, but they cost a lot. Valeo focuses on heat economy, which means that their alternators can work in places with high temperatures. Each brand uses its own engineering methods to keep costs, performance, and durability in check.
Compatible OEM part numbers allow for easy replacement without any changes. Our 24-volt alternator 80 amp works with the DAEWOO 219088, the DELCO REMY 390115, and a number of DOOSAN specs, such as 30090100033 and 30090100207. This wide flexibility makes inventory less complicated for fleet managers who have to deal with a mix of tools. By checking these cross-references against the service manuals for the equipment, costly mistakes in application can be avoided.
Optimizing Bulk Purchasing and Logistics
Buying in bulk lowers the cost per unit, but you need to be very good at predicting demand. Look at how often your fleet has failed in the past to get an idea of how many replacements you need each year. When you order packages every three months, you can combine the costs of keeping inventory with the price benefits of bigger sales. Talk about payment terms that work with your buying cycles. For example, net 60-day terms are better for managing cash flow than rules for prepayment.
For international operations to work, shipping plans and lead times for making things need to be coordinated. It usually takes 30 to 45 days for containers made in China to get to U.S. ports by ocean, plus time for customs clearance and transportation within the country. Shipping by air cuts the time it takes to 7–10 days, but it costs a lot more. Reliable providers keep a buffer stock and work with well-known freight forwarders who take care of paperwork correctly, so there aren't any delays at customs that throw off maintenance plans.
Maximizing Lifespan & Performance of Your 24 Volt Alternator 80 Amp
Routine Maintenance Practices That Extend Service Life
Every 250 hours of operation, a visual inspection finds problems before they become major ones. Check the case of the 24-volt alternator 80 amp for oily spots. These show that the engine seal is leaking, which saturates the internal windings. Check to see if the mounting bolts are tight. Vibration slowly loosens fasteners, letting them move too much, which damages brackets and electrical connections. Make sure that the cooling air passageways are still clear of any buildup of dirt.
The condition of the belt directly impacts how well and how long the 24-volt alternator 80 amp lasts. Replace serpentine belts as directed by the maker, which is usually every 1,500 to 2,000 hours or three years. During regular maintenance, use proper gauges to check the tightness of the belt instead of guessing or pressing on it with your thumb. Every year, use an anti-corrosion spray and a wire brush to clean the battery terminals and cable connections. This will keep the low-resistance electrical paths that make the 24-Volt Alternator 80-Amp's job easier.
Understanding Wear Indicators and Replacement Timing
Bearing noise is the most usual sign that something is about to die. When bearings wear out, they make a faint whine that gets louder as the RPM goes up. Grinding sounds mean that the bearings are about to break. Thermal cameras show where hot spots are growing inside the housing. This helps find internal leaks or problems with the regulators before they completely break down. Voltage output that slowly drops over months, needing higher and higher RPM to reach stated output, is a sign that the windings are breaking down from being exposed to heat for a long time.
Under normal situations, industrial 24-Volt Alternator 80-amperage units can work for 4,000 to 6,000 hours. Extreme dusty places, like demolition sites or grain processing plants, speed up bearing wear, which cuts the life of equipment by 30 to 40 percent. Engine chambers that are hotter than 80°C put extra stress on insulation systems and voltage regulators, which is why they need to be replaced more often. By keeping track of when each 24-volt alternator 80 amp in your fleet was replaced, you can find trends that help you plan repairs and make budget predictions.
Proper Load Management Prevents Premature Failures
The setup of the electrical system should stop it from running at full 24-Volt Alternator 80-amper power all the time. To find the total accessory load, add up the amp draws of all the electrical parts, such as lights, control systems, heaters, and other equipment. This amount shouldn't be more than 75% of the 24-Volt Alternator 80-Amp's rated output when it's working normally, so that it has enough power to charge the battery and handle surges.
Adding electrical devices without checking the 24-Volt Alternator 80-Amp's ability can lead to situations where it is constantly undercharged. Batteries never fully charge because of sulfation harm, which lowers their power and shortens their life. The 24-volt alternator 80 amp always works at full output, which makes too much heat that damages the windings and shortens the life of parts. When you improve your electrical systems, you should also upgrade the 24-Volt Alternator 80-Amp's capacity to make sure you have enough load gaps and that the system stays reliable.
Conclusion
Spending money on a good 24-Volt Alternator 80-Amp has a direct effect on how well your equipment works and how much it costs to maintain. Critical electrical systems work properly even when conditions are tough because they have enough power, are built well, and are known to work with other OEM products. Your team can make sure that parts last as long as possible and don't break down unexpectedly by knowing how to install them, how to maintain them, and what kind of performance is expected. Careful supplier selection, focusing on manufacturing quality, certification standards, and after-sales support, separates purchasing decisions that provide long-term value from those that cause ongoing issues and higher overall costs.
FAQ
1. How long does a 24V 80A alternator typically last in heavy equipment?
You can expect 4,000 to 6,000 hours of use under normal settings and with proper care. Extreme settings, like those with a lot of dust, high temperatures, or steady vibration, can shorten the life of equipment by 30 to 40 percent. Regular inspections and replacing belts at the right time greatly increase service life.
2. Can an 80-amp unit replace a 55-amp alternator safely?
Yes, as long as the electrical lines and mounting measurements are the same. There is no extra current going through the system because the larger unit has more reserve power. To ensure a good fitting, make sure that the type of belt and the design of the pulleys are still compatible.
3. What voltage reading indicates proper charging system function?
Around 27.8V to 28.6V is kept at the battery terminals by a strong 24-volt alternator 80 amp when the engine is running at 1,500 RPM. Even when the power is fully loaded, the voltage shouldn't drop below 27.5V. Lower numbers mean that the result isn't good enough and that the problem needs to be fixed right away.
4. Is this alternator compatible with lithium battery systems?
Standard voltage controllers made for lead-acid batteries might not work with lithium chemistry. Lithium batteries can continuously accept full charging power, which could cause alternators that don't have the right thermal safety to get too hot. Before connecting lithium banks, check with the battery makers to see what charge profiles will work.
Partner with XITU for Reliable 24 Volt Alternator 80 Amp Supply

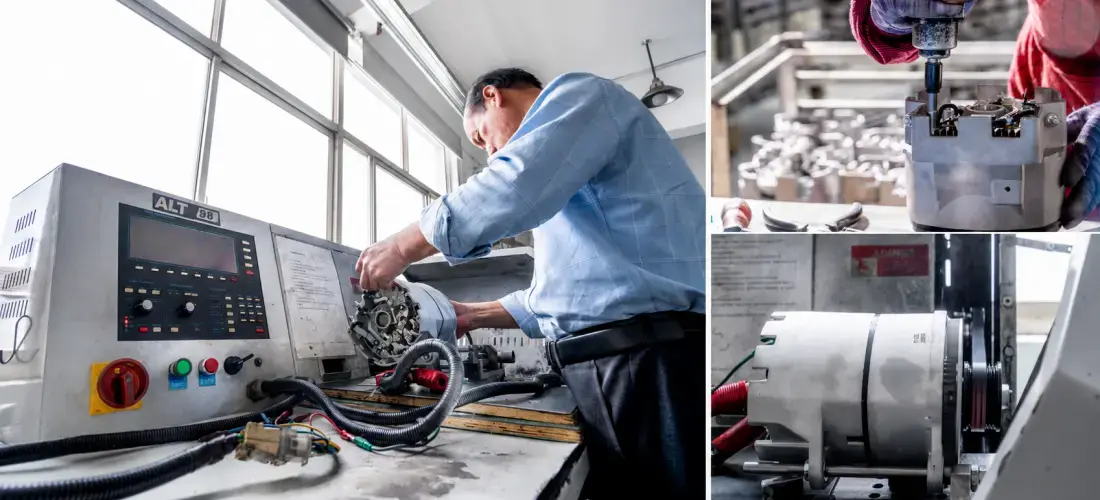

XITU offers electrical parts for industry that are backed by IATF 16949 approval and 28 years of manufacturing experience. For our 24-Volt Alternator 80-amper unit, we test them thoroughly using full-load performance curves, thermal stress screening, and salt spray resistance validation to make sure they meet or go beyond OEM standards. As a well-known alternator maker that works with Doosan, Daewoo, and aftermarket channels, we offer flexible ODM/OEM options at low prices, with production lead times of 30 to 60 days and warranties that include technical support for six months. Our team can help you match the specifications of a 24-volt alternator 80 amp to the needs of your tools, whether you need a single unit or a whole container load. You can email us at arisa@xitu-auto.com to talk about your purchasing needs and get full information on our ALD3329 series, which works with DELCO REMY 390115 and DOOSAN 30090100033 references.
