The Role of Alternators in the Electrical System of Heavy Duty Trucks

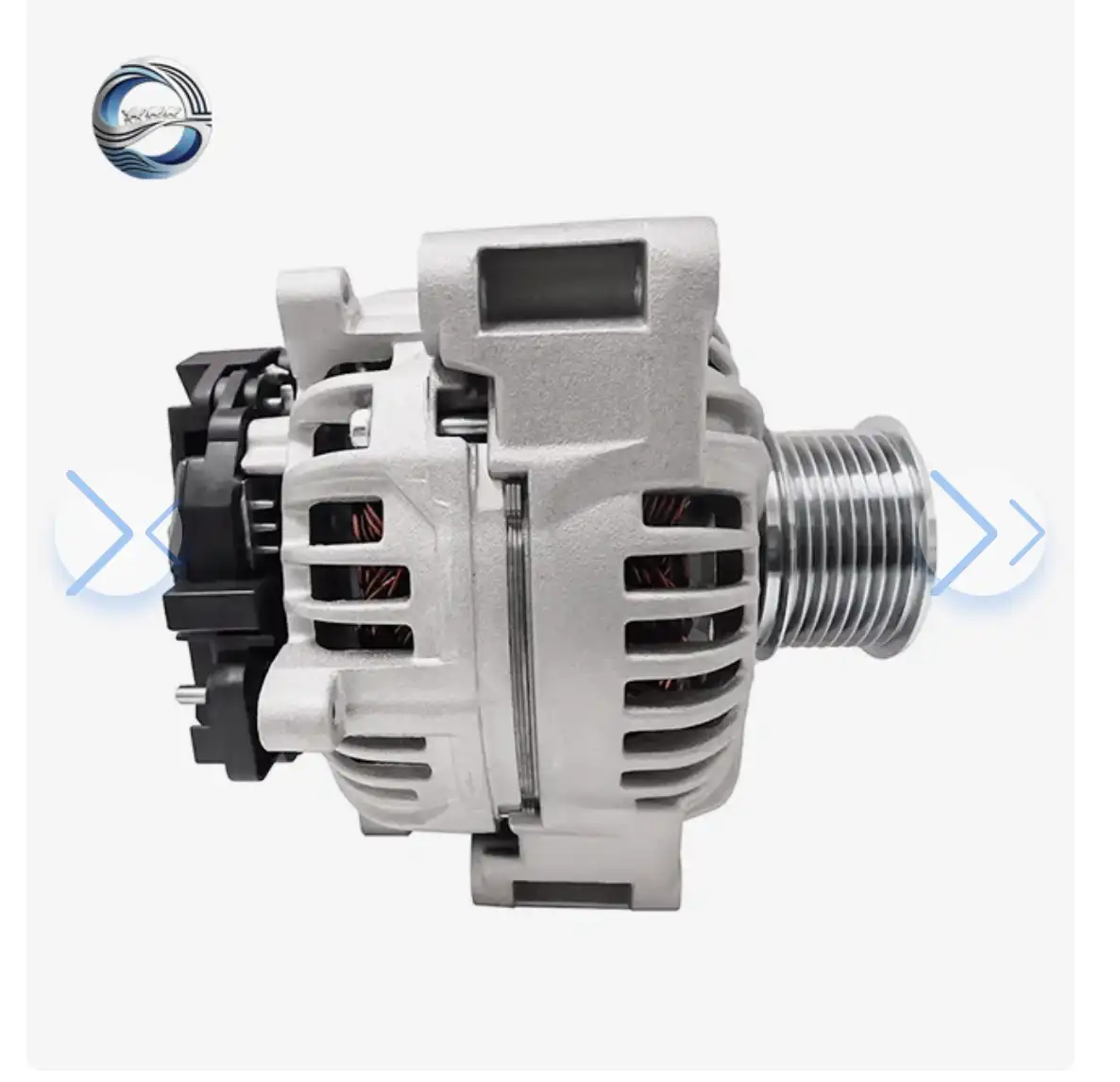

The electrical system of every commercial vehicle is reliant on the alternator. In large duty vehicles it transforms the engine’s mechanical energy into electrical current to both charge batteries and power all onboard systems simultaneously. A products">heavy duty truck alternator, unlike a typical passenger vehicle alternator, must be able to maintain high amperage output over lengthy cycles of operation, withstand intense heat and vibration, and support hotel loads during rest intervals for the driver. Getting this element right is not optional – it has a direct effect on fleet uptime, maintenance costs and profitability for both operators and parts distributors.

Understanding Heavy Duty Truck Alternators and Their Functionality

What an Alternator Actually Does

The alternator works by spinning a rotor inside a stator winding, generating alternating current that a rectifier bridge converts to DC power. This DC current charges the battery bank and feeds every electrical circuit on the truck simultaneously — from the ECU to brake lights to refrigeration monitoring units. Without a functioning alternator, even a fully charged battery will drain within hours under normal commercial loads.

Key Electrical Specifications That Matter

Output ratings for heavy duty truck alternator commercial vehicle charging systems typically range from 95A at the entry level to 350A for high-demand applications. Voltage compatibility — 12V or 24V — must match the truck's system architecture. Insulation class also matters: Class H windings tolerate sustained temperatures above 180°C, which is the realistic thermal environment inside a working engine bay.

Built-In vs. External Voltage Regulators

Integrated regulators simplify installation and reduce wiring points, making them the standard choice for aftermarket replacements. External regulators allow independent replacement if the regulator fails without scrapping the entire unit. For fleet procurement, built-in regulator designs generally lower total labor cost per replacement cycle.

Identifying and Troubleshooting Common Problems

Symptoms Worth Watching

Dimming headlights under load, battery warning lights cycling on at idle, and erratic instrument readings are the three most common early indicators of alternator degradation. A high-pitched whine from the drive belt area often signals a failing bearing or a shorted diode — both conditions that escalate quickly into full electrical failure if ignored.

How to Test Output Accurately

Testing starts with a digital multimeter across the battery terminals. A healthy system reads 13.8V–14.4V at idle with accessories running. Drop below 13.5V under load, and the alternator output is insufficient for the vehicle's demands. Fleet technicians also use dedicated alternator testers that measure output curve across RPM ranges, not just static readings.

Preventive Maintenance Checklist

Consistent inspection intervals are the simplest way to avoid unplanned roadside failures. Here are the key items to verify at every scheduled service:

• Belt tension and condition: A loose or cracked 8PK serpentine belt reduces rotor speed and drops output by 15–25% before the belt fails entirely.
• Mounting hardware torque: Vibration loosens bracket bolts over time; loose mounts accelerate bearing wear measurably.
• Terminal connection cleanliness: Corroded B+ terminals add resistance and cause false low-voltage readings that trigger unnecessary replacements.
• Cooling airflow path: Blocked vents trap heat against the diode bridge, degrading rectification efficiency within weeks in hot climates.

Addressing these four points at every PM interval catches the majority of preventable alternator failures before they become roadside events.

Upgrading and Choosing the Right Commercial Alternator

When an Upgrade Makes Financial Sense

When a heavy duty truck alternator cannot dependably supply the vehicle's electrical load or frequent repairs raise maintenance expenses, upgrading is cost-effective. Fleets with auxiliary lighting, refrigeration, telematics, or other electrical accessories may require a higher-output alternator. Before upgrading, check the alternator's rated output against the vehicle's overall electrical demand and make sure the new unit fits the mounting system, wiring, and voltage. Higher-output alternators can fulfill power needs, but the savings should be weighed against the purchase price, installation expenses, and possible downtime.

TCO Comparison: OEM vs. Quality Aftermarket

It gets very hot inside the machine when the cooling vents are clogged with dust. Low-pressure compressed air should be used every 500 hours to clean out the back chamber of dirt and dust. For machines that work in salty or wet places, a thin layer of dielectric grease on the terminal posts will keep them from rusting between service calls. To protect the alternator housing, do not use high-pressure water to clean it directly.

Cross-Platform SKU Efficiency

Choose alternators that work with many vehicle types to simplify inventories for fleet operators and parts wholesalers. Buyers may decide whether one alternator SKU fits many vehicle variants without sacrificing electrical performance or installation fit. Before combining SKUs, check rated voltage, amperage, mounting dimensions, connection type, pulley arrangement, and OEM part-number cross-references. A verified compatibility list may assist buying teams decrease duplicate stock, streamline replenishment, and increase mixed fleet components availability.

Strategic Procurement for Fleet and Distribution Operations

Building a Decision Framework

Getting John Deere OEM parts from one country to another can take up to 10 weeks and costs a lot. A lot of people know that Bosch units (OEM numbers 0124655033, 0124655852) are good, but they cost a lot more than approved aftermarket options. For people who are in charge of 30 to 200 machines, the difference in cost over the course of a year's worth of planned replacements is big.

XITU Aftermarket vs. OEM (JD/Bosch)

Volume Sourcing and Logistics Considerations

They both make good 24V heavy-duty units for the North American market. The brands are Leece Neville and Denso. For a straight fit without having to change the frames for John Deere G-series articulated trucks, the part must be cross-reference compatible with Bosch numbers 1986A00976, 1986A01175, and FF101774. The XITU unit works with all eight Bosch cross-reference numbers as well as the John Deere RM100160. This makes it easy to buy parts for groups of models that are different.

OEM Exchange and Warranty Program Value

A John Deere 870G can't use a 90A heavy duty truck alternator to power GPS, two work light circuits, and active hydraulic monitoring all at the same time. With 130A, these systems get the extra power they need. If you're upgrading from a 90A unit, you need to make sure the fuse and wiring gage can handle the extra current. When wiring a 130A 24V device, the B+ output wire should be at least 4 AWG.

Future Directions in Commercial Vehicle Charging Systems

Brushless Architecture as the Performance Baseline

Brushless alternator designs eliminate the single highest-wear component in a conventional unit. Without carbon brushes making constant contact with slip rings, there is no progressive resistance increase, no carbon dust contaminating the bearing cavity, and no periodic brush replacement interval. XITU's brushless units carry a documented service life exceeding 1,000,000 miles under heavy-duty operating conditions — a figure that changes the maintenance calculus for long-haul fleets entirely.

Telematics Integration and Real-Time Monitoring

Fleet telematics platforms now allow voltage and charging current monitoring at the individual vehicle level. When alternator output trends downward over successive data points, predictive maintenance systems flag the unit for scheduled replacement before failure occurs. Pairing quality charging hardware with data-driven maintenance cycles is how leading fleets are moving away from reactive repair and toward planned component management.

Regulatory and Efficiency Pressures

EPA and CARB idle-reduction regulations in the United States push fleets toward electrical hotel-load solutions rather than idling engines during driver rest periods. This increases the demand on the charging system during active driving to pre-charge battery banks that will later sustain overnight loads. Alternators with higher output efficiency curves at mid-range RPM — not just peak output ratings — become the relevant specification for compliant fleet operation.

Conclusion

To keep John Deere G-series machines running and protect all downstream electrical components from voltage fluctuations, the heavy duty truck alternator must be in good condition.It only takes twenty minutes to do the steps in this article: baseline voltage, load test, and ripple check. They can save you a lot of money on fixes that would have cost a lot more than the part itself. It costs less to own a fleet of machines if you buy them from a source with confirmed certifications, full OEM cross-reference coverage, and stable output quality. There is an alternator 24 volts 130 amp from XITU that can do this.

FAQ

1. How often should a commercial truck alternator be inspected?

Fleet maintenance programs typically schedule alternator output testing every 50,000 miles or annually, whichever comes first. Visual inspection of belt condition and terminal connections should happen at every oil change interval. Brushless designs extend the time between detailed inspections because there are no brush wear measurements to track.

2. What separates a quality aftermarket unit from a low-grade substitute?

The key differences are copper winding purity, diode temperature rating, bearing specification, and whether the manufacturer holds IATF 16949 certification. A unit built to these standards will perform comparably to the OEM original. A unit that cuts corners on any of these will show elevated failure rates within the first 12 months of fleet use.

3. Does upgrading to a higher amperage unit increase maintenance costs?

No — a properly sized higher-output unit actually reduces thermal stress on the alternator and on the battery bank, which lowers long-term maintenance costs. The key is matching the wiring harness gauge to the new output rating and confirming that the mounting bracket follows SAE J180 specifications for a direct-fit installation.

4. How do I verify cross-reference compatibility before placing a bulk order?

Request the supplier's full cross-reference list and verify at least five OEM part numbers against the actual vehicle service manuals for the machine models in your inventory. XITU's technical team can provide confirmed cross-reference documentation for CASE IH, John Deere, Scania, and Bosch part families before any order is placed.

Partner with XITU for Your Next Heavy Duty Truck Alternator Order

For 28 years, XITU has been making 24V 130A alternators. They are IATF 16949 and ISO 9001 approved, which means they can send certified alternators to John Deere farms all over the world. No matter how many samples you need or how few you need, our team can help you quickly and for a good price. You can get a price and see all of our paperwork on compatibility right away by emailing arisa@xitu-auto.com or going to xitu-auto.com.

References

1. Society of Automotive Engineers. SAE J180: Alternator and Regulator Testing. SAE International, 2019.

2. Bosch Automotive Handbook. Electrical Systems in Commercial Vehicles. Robert Bosch GmbH, 10th Edition, 2018.

3. National Research Council Canada. Energy Efficiency in Heavy-Duty Vehicle Electrical Systems. NRC Publications, 2020.

4. Fleet Owner Magazine. Alternator Failure Patterns in Class 8 Trucks. Endeavor Business Media, 2022.

5. CALSTART. Advanced Electrical Systems for Commercial Trucks and Buses. CALSTART Industry Report, 2021.

6. SAE International. Electrical Load Analysis for Commercial Vehicles. SAE Technical Paper Series, 2023.
