How to Choose a 24 Volt Alternator 80 Amp for Your Vehicle
Choosing the correcalternator%2080%20amp&type=products">t 24 volt alternator 80 amp for heavy duty machinery is not something to be decided on a whim. Incorrect unit choice might lead to long-term undercharging, electrical instability or early component failure across your system. From how these alternators function and how to evaluate vendors, to procurement managers, engineers and OEM purchasers will find this book covers all the key factors. If you are sourcing Doosan excavators, Daewoo industrial equipment or mixed-voltage fleets, this guide provides you with a viable, technically based road ahead.
Understanding the Role and Function of a 24 Volt Alternator 80 Amp
How an Alternator Converts Power
Alternators produce alternating current ( AC ) by rotating a rotor within a stator . A rectifier bridge converts the AC into direct current (DC). The internal voltage regulator maintains the output voltage (typically 27.8V to 28.6V for a 24V system) constant, no matter what the engine rpm is. This steady voltage window protects sensitive devices such as ECUs and telematics units from harm due to too much or too little electricity.
Why 24-Volt Architecture Matters
A 24 volt alternator 80 amp system gives off the same amount of power at half the current of a 12V system. This implies that reduced resistive losses and smaller wire gauges are required when cables are routed long distances. Hence the 24V design is the norm for big construction equipment, commercial vehicles and boats where high parasitic loads and lengthy cable lengths are the norm.
Where 80 Amps Fits in the Power Range
This device will provide roughly 1.92 kw of power with a steady output of 80 amps. That kind of power can readily run GPS systems, hydraulic electronic controls, additional lighting and cab temperature systems all at once, without over-stressing the drive belt. It is located between lighter 60A units and more powerful 100A+ units and is a solid option for most heavy-duty applications.
Key Criteria to Consider When Choosing a 24 Volt Alternator 80 Amp
If you choose the wrong alternator, you will waste money and cause your equipment to break down. Carefully think about these four things before you buy.
Electrical Load Assessment
Sum up the current consumption of all the systems which are always on, such as HVAC, lights, telematics and hydraulic solenoids. 80A alternator will provide you a little of additional power if your peak overall demand is 65-70A. If you often consume more than 75A you may wish to upgrade to a 100A unit.
Voltage System Compatibility
You should never connect a 24V generator to a 12V system without converting it first. If you charge at a greater voltage you will ruin 12V batteries and devices in a matter of hours. Know the amperage of your fuse panel. Know the amperage of your starting motor. Know the voltage of your battery bank. Before you purchase a new unit.
Environmental and Duty-Cycle Ratings
Here are the safety elements to look for when you buy:
- IP Rating: If you’re working in a dusty quarry or a humid seaside area, seek for a minimum IP54 ingress protection rating to prevent against dust particles and water spray.
- Winding Insulation Class: Class H windings are rated for temperatures up to 180°C, which is an important consideration when it’s installed in an engine compartment with limited ventilation.
- Bearing Load Rating Sealed heavy-duty bearings are designed to handle the axial and radial load imposed by serpentine belt strain.
These safety regulations directly impact the life of the item before servicing in severe environments.
OEM Reference Cross-Compatibility
| OEM Brand | Reference Numbers |
|---|---|
| DAEWOO | 219088, RK390115 |
| DELCO REMY | 30090100033, 390115 |
| DOOSAN | 30090100025, 30090100033, 30090100034, 30090100207, 390041, A000028, K1010702, K1010703 |
| XITU | ALD3329 series |
Checking OEM cross-references before placing an order gets rid of the risk of not fitting and saves you money on returns.
Comparing Popular Models and Alternatives for 24 Volt 80 Amp Alternators
80 Amp vs. 100 Amp: Which Do You Actually Need?
Most standard heavy-duty tasks can be done with a 24 volt alternator 80 amp. If the machine has more than one high-draw accessory working at the same time, such as a hydraulic lifting device with full lighting and active telemetry, then a 100A unit is required. To size the alternator larger than the electrical demand requires does not provide any advantage, but does put more stress on the belt and burn more gasoline.
24V 80A vs. 12V 160A: Different Architecture Entirely
A 12V 160A generator will provide the same power as a 24V 80A generator, but will need larger wire and will have greater resistive losses if the wire has to be carried a long way. You don't simply change architectures, you have to make the complete system for charging and beginning work with the new one. The appropriate technique to manage a mixed-voltage fleet is not to attempt to replace across voltages but to select matching units for each voltage class.
XITU ALD3329 Series: Technical Specifications at a Glance
| Specification | Detail |
|---|---|
| Voltage / Current | 24V DC / 80A continuous |
| Power Rating | ~1.92 kW (2.2 kW peak) |
| Pulley | 8PK serpentine belt |
| Mount | SAE J180 standard bracket |
| Regulator | Integrated AVR with temperature compensation |
| Protection | IP54, Class H windings, sealed bearings |
| Housing | Die-cast aluminum alloy |
| Weight | Approximately 8–10 kg |
Installation, Wiring, and Maintenance Best Practices
Wiring Essentials for Industrial Applications
The output cable should be rated for at least 125% of the rated current. For example, an 80A alternator would need a cable rated at least 100A. Use ring terminals to keep all connections secure and dielectric oil on the B+ post to protect it from rusting. Keep wires away from exhaust portions where insulation may break down from heat.
Testing Alternator Output After Installation
Engine should be 2000 RPM. And tools should be on. Then, attach a calibrated clamp metre to the B+ output port. In this situation a functional 80A unit should be able to produce at least 64A, or 80% of its rated output. You should be measuring between 27.8V and 28.6V at the battery terminals. Anything above or below this is an indication of a problem with the regulator or wiring.
Routine Maintenance Schedule
The life of a product may be considerably extended with regular upkeep. Important check times:
- Check belt tension and condition. A loose 8PK belt may lower alternator power and cause faster wear.
- Every 1,000 hours Check terminal torque and examine for corrosion, re-apply dielectric grease as required.
- Every 2,000–3,000 hours: Inspect length of brushes on brushed models; replace if worn below minimum standard provided by the manufacturer.
This timetable reduces unexpected downtime and extends the life of the alternator beyond the regular period between repairs.
Purchasing and Procurement Tips for B2B Clients
Evaluating Supplier Qualifications

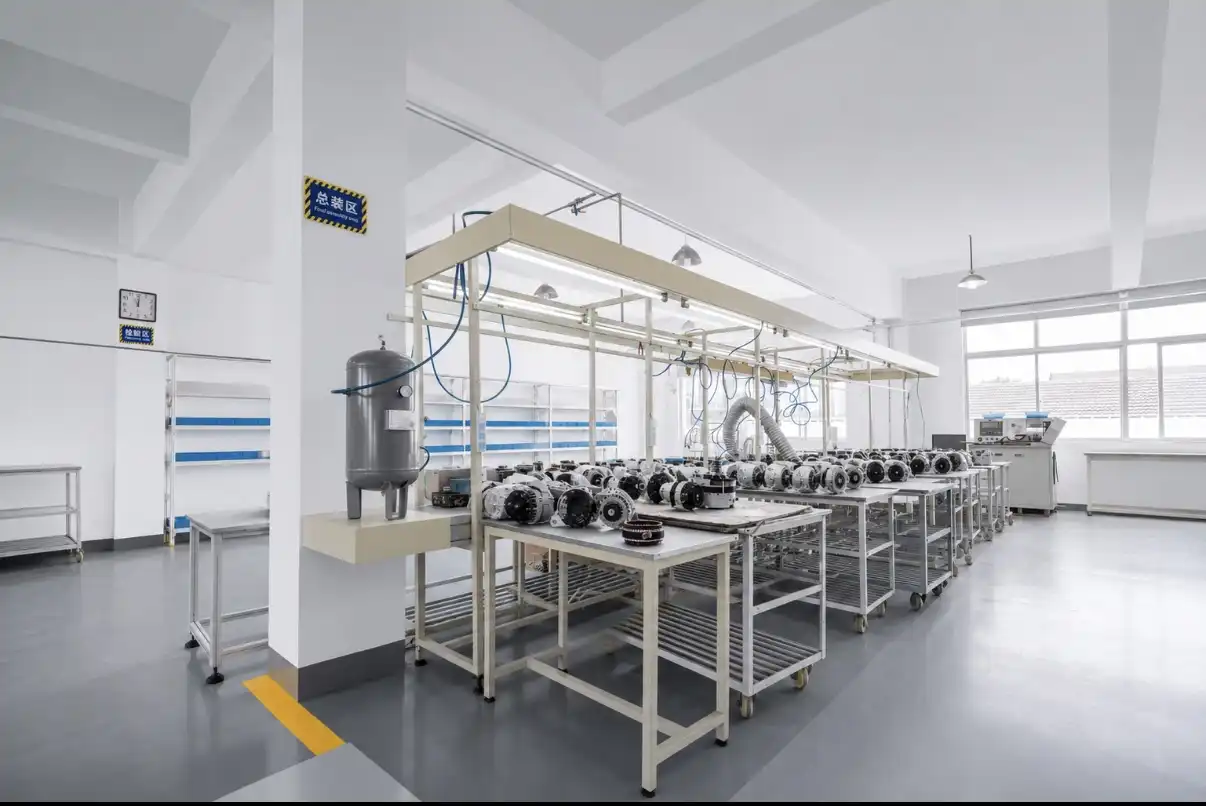

For auto parts manufacturing businesses, the minimum acceptable quality standard for 24 volt alternator 80 amp is IATF 16949 certification. It shows that the supplier has established systems for process controls, traceability, and corrective action. Suppliers without this accreditation are much more likely to ship faulty goods to OEM and big volume aftermarket consumers. XITU is located in a 20,000 m² IATF 16949 certified plant and exports more than 500,000 units per year.
Understanding Price Drivers and Bulk Pricing
The prices of industrial 24V alternators on the market depend on the amount of copper they contain, the quality of their bearings and the cost of their certification. Inexpensive units are typically built using rectifier diodes or weaker stator windings, which diminishes their longevity. B2B purchasers receive the best discounts on big purchases by negotiating on their yearly purchase pledge (not the size of the order).
Building Long-Term Supplier Relationships
A supplier offering a six-month guarantee and test records for each shipment represents value that may be assessed beyond the unit price. XITU examines the quality of a product five times each unit before shipment. These include the testing of the full-load performance curve, thermal endurance at 90°C, resistance to ASTM B117 salt spray, dynamic rotor balancing and the EMC testing. This multi-stage procedure directly reduces the amount of field failures and the expense of warranty claims to both brand owners and to distributors.
Conclusion
Before buying, please verify that the 24 volt alternator 80 amp fulfils your electrical load requirements, system voltage, ambient standards and OEM fitting specifications. The XITU ALD3329 range has taken all these factors into consideration with proven standards, IP54 protection, Class H windings and a lot of equipment that works with both Doosan and Daewoo. XITU has been creating things for 28 years, is IATF 16949 certified and has a five step quality testing methodology. This means greater control for the B2B customer and a more consistent delivery than smaller workshops can provide.
FAQ
1. Can a 24 Volt Alternator 80 Amp replace a 55A unit?
Yes, as long as the mounting footprint is in line with SAE J180. The 80A unit won't add extra current to the system; it just makes the system's capacity headroom bigger, which helps machines that are adding more electrical accessories like lighting or telematics.
2. What charging voltage should this unit regulate to?
At 25°C, a unit that is working properly should be able to maintain a voltage of between 27.8V and 28.6V. The batteries in most heavy building tools are either lead-acid or AGM, and this range works with both types.
3. Why does output drop when the engine runs hot?
In hot environments, the internal regulator lowers the output voltage to protect the diodes and windings. This is called thermal derating. The XITU ALD3329 and other units with Class H windings and temperature-compensating controllers show a lot less derating than standard-grade options.
4. Is this alternator compatible with LiFePO4 batteries?
Not right away. Lithium batteries can continuously draw 80A, which could cause a regular alternator to get too hot. Between the alternator and a lithium battery bank, you need a DC-to-DC charger or a lithium-profile external regulator.
5. How often should brushes be inspected?
For brushed models, check them every 2,000 to 3,000 hours of use or when the engine is completely taken apart. Brushless generator designs get rid of this need for upkeep completely.
Partner With XITU for Your 24 Volt Alternator Supply
XITU offers a tried-and-true 24 volt alternator 80 amp option made to work well in industrial settings. For 28 years, we've been making approved 24 volt alternator 80 amps. We offer OEM/ODM freedom, reasonable bulk price, and a six-month guarantee with full test paperwork. You can email our team at arisa@xitu-auto.com or go to xitu-auto.com to get a price or download the ALD3329 product brochure.
References
1. Society of Automotive Engineers. SAE J180: Alternator Performance Test Standard. SAE International, 2019.
2. Bosch Automotive Handbook. Electrical Systems and Components, 10th Edition. Robert Bosch GmbH, 2022.
3. ASTM International. ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus. ASTM International, 2019.
4. International Automotive Task Force. IATF 16949:2016 – Quality Management System Requirements for Automotive Production. IATF, 2016.
5. Larminie, J., & Lowry, J. Electric Vehicle Technology Explained, 2nd Edition. Wiley, 2012.
6. Gieras, J. F. Electrical Machines: Fundamentals of Electromechanical Energy Conversion. CRC Press, 2016.
