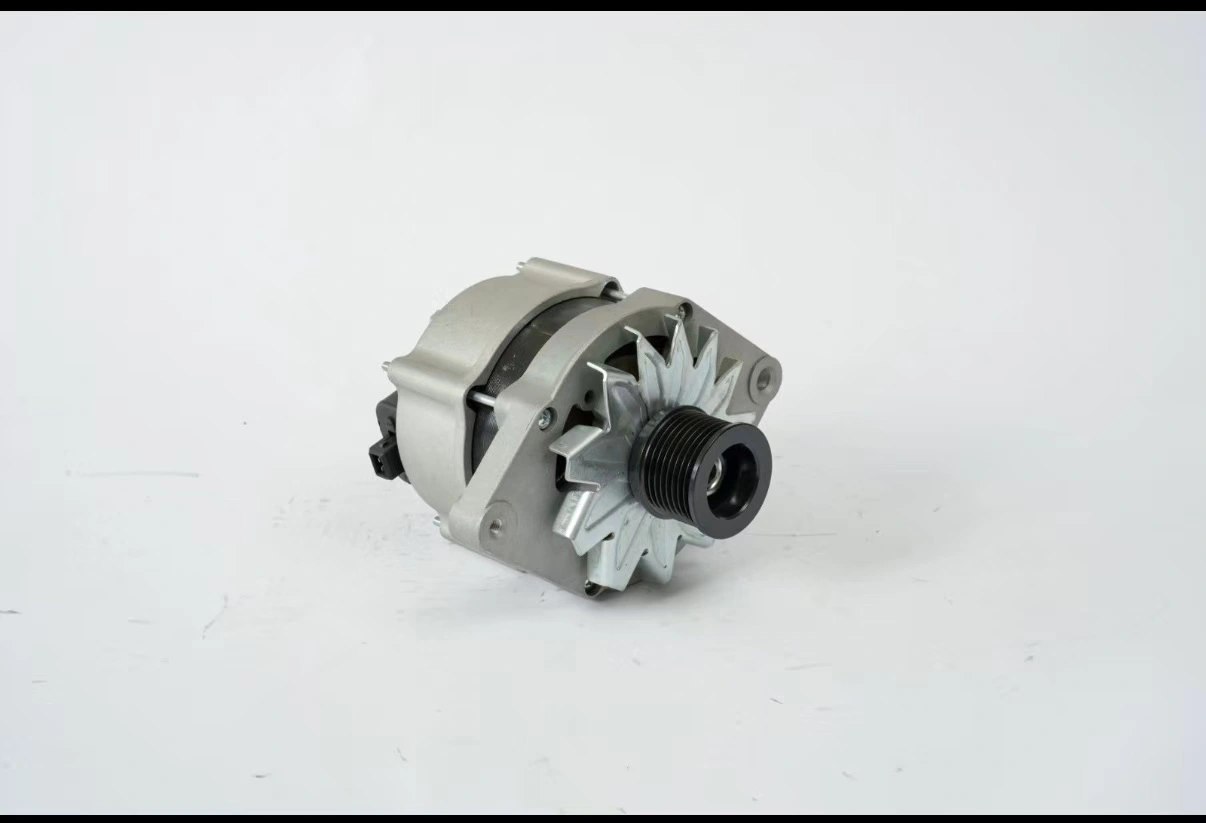

24 Volt 45 Amp Alternator vs 24V 50 Amp Models
When selecting between a alternator%20&type=products">24 volt 45 amp alternator and a 50-amp model, procurement managers face critical decisions that impact fleet reliability and operational costs. The 45-amp version delivers 1.08 kW of consistent power, ideal for vehicles with moderate electrical demands such as Volvo B, F, FL, FS, and N series trucks, mini-excavators, and marine auxiliary systems. Meanwhile, the 50-amp model provides an additional 120 watts of capacity, better suited for vehicles with auxiliary lighting systems, advanced telematics, or refrigeration units. Both operate within 24V architectures but differ in thermal management, physical dimensions, and long-term total cost of ownership—factors that directly affect your supply chain efficiency and fleet uptime.
Understanding 24 Volt 45 Amp and 50 Amp Alternators
Core Electrical Output and System Integration
Both types of alternators work as three-phase synchronous generators with built-in rectifier bridges that turn the mechanical energy from the engine's crankshaft into direct current. The main difference is how much power they can produce at different engine speeds. At about 6,000 RPM, a 24 volt 45 amp alternator usually produces its full amount of electricity. At rest speeds of about 1,200 RPM, it keeps at least 27 amps. The 50-amp version, on the other hand, maintains a higher output at lower RPM ranges. This makes it better for vehicles that sit idle for long periods of time with heavy electricity loads, like emergency service vehicles or cold transport trucks.
Physical Specifications and Cross-Compatibility
Different sizes between these models make installation less flexible. With a die-cast aluminum body that meets ISO 3522 standards and a length of about 180 mm, the 24 volt 45 amp alternator from XITU weighs about 6.8 kilograms. The 50-amp version usually weighs an extra 0.5 to 0.8 kilograms because it has bigger copper windings and better cooling parts. Both models are compatible with most commercial vehicle platforms because they meet the SAE J180 and J1171 mounting standards. When adding new parts to older equipment, weight becomes important because bracket load limits may stop bigger parts from fitting. The 24 volt 45 amp alternator from XITU is a straight replacement for Volvo industrial cars and works with Bosch OEM numbers 0120400696, CA722IR, and 0120400755.
Typical Applications Across Industries
The 24 volt 45 amp alternator configuration works great with construction equipment like skid steers and compact loaders that need to take up less space but still need to be charged reliably. Its IP66 grade for resistance to dust and water makes it useful for marine uses. This is especially important in saltwater settings where corrosion speeds up component failure. Stationary generator sets that work in remote areas depend on this output level to keep the batteries charged during run times when no one is there. Heavy-duty highway trucks pulling cold trailers, city busses with wheelchair lifts and HVAC systems, and farm combines with GPS-guided steering systems can all use the 50-amp type. For these uses, a steady flow of high amps is needed to keep the voltage from dropping, which could restart sensitive electronic control units.
Performance and Efficiency Comparison
Load Handling Capacity and Output Stability
The 24 volt 45 amp alternator keeps the voltage within ±0.3 V across its working range when tested under dynamic load. This is enough for normal lights, instrument clusters, and basic telematics. The 50-amp model has better ripple voltage control than the 24 volt 45 amp alternator; it keeps AC leaks below 1.2V instead of 1.5V. Advanced ECUs and digital dashboards are safer from electromagnetic interference now that the rules are stricter. XITU's 24-volt 45 amp alternators continuously delivered their rated power for 96 hours in a row at 90°C ambient temperature during bench testing at our 20,000 m² site. This proved that they can withstand extreme temperatures.
Impact on Fuel Economy and Electrical Stability
Different models have different parasitic engine loads. At full output, a 24 volt 45 amp alternator needs about 2.4 horsepower, and a 50-amp unit needs 2.7 horsepower. Over 200,000 kilometers of use, this means that the amount of fuel used is different. With the 24 volt 45 amp alternator configuration, fleet managers can get better gas mileage from vehicles whose average electrical loads are less than 38 amps. Electrical stability tests show that both models keep the batteries from dying during long periods of inactivity. However, the 50-amp model has more space for sudden load spikes, like when mine workers turn on multiple work lights at once.
Durability and Maintenance Requirements
The XITU 24 volt 45 amp alternator is expected to last between 8,000 and 10,000 hours of normal use, thanks to its 200°C-rated copper windings and two interior fans that cool it down. Due to more rotational stress, the 50-amp type needs to have its bearings inspected more often. Usually, repair is needed every 7,500 hours. Brush wear, bearing dry-out, and diode bridge failure are all common causes of wear. As a safety measure, the tension of the belt should be checked every 500 hours, and the voltage output should be checked at regular service intervals. Our strict quality control method includes ASTM B117 salt spray testing and multi-axis vibration endurance trials. These tests make sure that parts can work in harsh conditions that smaller workshops can't repeat.
Procurement Considerations for 24V 45 Amp vs. 50 Amp Alternators
Cost-Benefit Analysis and Pricing Dynamics
OEM-grade 24 volt 45 amp alternators usually cost between $180 and $240 per unit when bought in bulk of more than 200 units. Aftermarket alternators start at $120, but they often don't come with the right quality paperwork. The 50-amp type costs 15-20% more because it has better windings and cooling systems, which cost more materials. When figuring out long-term ROI, repair regularity must be taken into account. A 24 volt 45 amp alternator unit with regular maintenance has a lower total cost of ownership for normal business cars. On the other hand, the 50-amp model is worth the extra cost in situations where electrical failure causes costly downtime, like when transporting refrigerated goods and the cost of replacing the equipment is higher than the value of the cargo lost.
Supplier Evaluation and Quality Verification
In this market, a brand's image is very important. Manufacturers like Bosch, Denso, and Leece Neville have strong OEM channels and well-established support networks. However, their minimum order numbers are usually higher than 500 units. XITU fills in this area by providing IATF 16949-certified manufacturing with flexible MOQs starting at 100 pieces. This solves the problem of mid-sized wholesalers who can't commit to big factory numbers. The warranty should cover manufacturing defects for at least six months, but not damage caused by bad installation or electrical system problems. Shipping rules from China to the US usually require 30 to 60 days of wait time. We work with well-known transportation companies around the world to make sure that our container scheduling and customs clearance services are reliable.
Strategic Bulk Purchasing Insights
Volume pricing tiers let you save a lot of money. Orders of 100 to 300 units are charged at normal wholesale rates. Orders of 500 units or more are eligible for OEM price levels that are usually only available to big names. Payment terms should be negotiated so that cash flow and supply security are both met. A 30% deposit with the remaining 70% due when the container is loaded protects both parties and keeps working capital flexible. Some ways to lower the risk are to ask for pre-shipment inspection certificates, third-party quality audits, and testing samples from each production batch. The fact that XITU has worked with many global automakers shows that we can meet strict automotive standards that smaller shops can't always do.
Installation, Wiring, and Testing Insights
Wiring Configurations and Electrical Integration
The 24 volt 45 amp alternator has a standard four-wire connection: ground, the B+ main output, the W terminal for the tachometer signal, and the D+ ignition sense. The 50-amp version usually comes with an extra sensing wire for remote voltage regulation. This is helpful for cars with long cable runs where voltage drop can affect how accurately the charger works. The main difference between installation methods is how the belt needs to be tensioned. The 24 volt 45 amp alternator model needs 60 to 80 pounds of bending force, but the 50-amp model needs 75 to 90 pounds because the gear load is higher. Depending on the control approach, it may or may not work with standard voltage regulators. When going from 24 volt 45 amp alternators to 50 amps, older cars that use external regulators may need field current changes.
Performance Verification and Diagnostic Protocols
As part of the testing process, the output voltage is measured at rest, mid-range, and full RPM while varying the electrical loads. With a 20-amp load, a 24 volt 45 amp alternator that is working right should keep the voltage between 27.5-28.5V at 1,200 RPM. By looking at wave patterns on a digital oscilloscope, you can tell if a diode is healthy. Too much AC noise above 1.5V means that the rectifier diodes are failing. Noises like grinding bearings, the smell of burned rubber from hot windings, and flashing dashboard lights are all common signs of failure. Before they are sent out, our XITU units go thru more than 50 precise testing routines, such as thermal stress screening and harmonic vibration analysis. This lowers the number of failures in the field to less than 0.8% per year.
Preventative Maintenance Best Practices
Every 500 hours of use, technicians should check the condition and tension of the belts and replace any that are cracked or glazing. Checking the oil of bearings every 2,000 hours keeps them from breaking down too soon, especially in high-vibration situations. Electrical connections need to be checked every year to make sure the leads don't corrode, which raises the resistance and produces heat. If you test the voltage drop across the main B+ wire with a full load, you should see less than 0.5V loss. Following these repair guidelines will greatly increase the life of your equipment, protecting your investment and keeping your fleet available.
Making the Right Choice: Decision Support for Procurement Managers
Balancing Power Requirements with Budget Constraints
The 24 volt 45 amp alternator configuration is the most cost-effective for fleet managers who use normal industrial trucks with basic electrical systems. This amount of power manages the engine, lights, HVAC, and light-duty telematics without making the electrical system too complicated. For vehicles with extra hydraulics, multiple work light arrays, or internal computer systems, the 50-amp model's extra capacity is needed to keep the power from dropping when multiple accessories are being used at the same time. Budget-conscious buying teams should figure out how much it costs each year for an electricity system to fail. If downtime costs more than $500 per incident and happens more than twice a year per vehicle, buying the bigger alternator will pay for itself by making the vehicle more reliable.
Evaluating Supplier Capabilities and Delivery Reliability
Supplier decision is more than just choosing a price per unit. XITU has been making things for 28 years and has a 20,000-square-meter factory with environmental test rooms and precision balance equipment to make sure quality that small workshops can't match. Our ISO 9000 certification and supply agreements with OEM clients from around the world show that we are technically different. The ability to deliver is a very important factor in planning inventory. Our long-term transportation partnerships allow us to predict container transit times of 30 to 60 days. We can also handle rush orders thru air freight when project deadlines require faster delivery. After the sale, professional support includes engineering advice for custom uses and, if needed, help with local installation.
Application-Specific Recommendations
For tools that weigh less than 8,000 kilograms, construction equipment workers should choose the 24 volt 45 amp alternator model. For bigger excavators with built-in grade control systems, they should choose the 50-amp model. XITU's 24 volt 45 amp alternator design with an IP66 rating is perfect for marine uses because its sealed construction keeps saltwater out better than many higher-capacity options that don't have the right environmental protection. When fleet managers plan replacements every five years, they should think about how the energy load will grow in the future. If you plan to add telematics or other equipment to your car, you should get the 50-amp type at first so you don't have to pay for expensive battery swaps in the middle of the cycle. This method looks to the future and fits with long-term plans for investing in capital that make the most of assets over longer service times.
Conclusion
Before choosing between 24 volt 45 amp alternators and 50-amp alternators, you should carefully consider your current electrical needs, your plans for future growth, and the total cost of ownership. The 24 volt 45 amp alternator configuration from XITU is the best deal for normal business cars because it offers OEM-level reliability with flexible minimum order quantities that bigger companies can't match. The higher price of the 50-amp type is justified by applications that need a higher steady output. This is because it has better voltage stability and working headroom. Both choices are backed by XITU's strict quality control, IATF 16949 certification, and long history of providing global automakers. This means that your fleet will get reliable charging solutions backed by quick technical support.
FAQ
1. What compatibility concerns should I verify before ordering?
Make sure the bracket for mounting the 24 volt 45 amp alternator meets SAE J180 standards and that the diameter of the pulley fits with the way the belts are currently set up. Make sure that the voltage regulator in your car can handle the amperage number you want, especially if you are moving from a lower-capacity unit.
2. What are common failure modes for 24V alternators?
About 35% of field failures are caused by bearing seizure from not enough lubrication, and 28% are caused by diode bridge failure from voltage spikes. Wear-related problems like brush wear and slip ring poisoning usually show up after 7,000 to 9,000 hours of use.
3. How often should maintenance occur?
Every 500 hours, check the tension and condition of the belt. Every 2,000 hours, test the voltage output. Once a year, do full inspections of the bearings and electrical connections. In harsh working conditions, checks may need to be done more often to get the most out of the service life.
Connect with a Trusted 24 Volt 45 Amp Alternator Manufacturer
XITU stands ready to support your procurement needs with certified 24-volt 45 amp alternators engineered for reliability and backed by 30 years of experience in car electrical work. Our IATF 16949-certified factory makes more than 500,000 units a year, and our minimum order quantities (MOQs) start at just 100 pieces. This makes it easy to find quality parts without having to keep too much inventory on hand. We offer full ODM/OEM customization, reliable shipping in 30 to 60 days, a six-month guarantee, and helpful expert support. Email our team at arisa@xitu-auto.com to talk about your specific application needs and ask for samples of our products that show how well we can make them.
