Output of 12V Alternator

Output of 12V Alternator - Professional Automotive Charging Solution

The Output of 12V Alternator determines performance when your vehicle's electrical system needs constant, dependable power. Wuxi Xitu Industry and Trade Co., Ltd. makes superior 12V 90A alternators for Toyota HILUX VIII models. Our devices use a 7PK pulley system and 58.5mm diameter for maximum power transfer and consistent charging voltage between 13.5V and 14.8V. With 20+ years of manufacturing experience, our IATF 16949-certified 20,000 m² plant produces 500,000+ products yearly utilising 50+ precise equipment. Each alternator has aluminium casing, copper windings, and OEM compatibility with F000BL0131, 27060-0L150, and WG2283970 for factory-grade dependability.

Understanding Output of 12V Alternator Performance

Product signifies more than voltage. The electrical power generating capability in Amperes charges your vehicle's battery and powers all electrical systems.

Professional alternators have a certain voltage range. Operates from 13.5V to 14.8V despite being labelled 12V. This high voltage overcomes battery internal resistance and completes charging cycles.

Our Toyota-compatible alternators max out at 90A. This amperage rating controls how many car accessories may be powered. The charging curve depicts amperage versus engine RPM, with cut-in speed at 1,200-1,500 alternator RPM.

Our units power vital systems at idle rates (2,000 alternator RPM). They achieve peak capacity at 6,000 RPM, maximising highway charging performance.

Technical Specifications

OEM Compatibility & Application Range

Your alternator replacement project requires exact fitment specifications. Our units are engineered to match original Toyota equipment standards precisely.

Compatible OEM Part Numbers:

• Bosch: F000BL0131, F000BL0132, F000BL01A1, F000BL01A3
• Toyota: 27060-0L150, 27060-0L170B
• Aftermarket: ALT10042, ALB2204, 556430RI, WG2283970
• Cross-reference: 195.326.088.010, 195.326.088.280, A131.289

Primary Vehicle Applications:

• Toyota HILUX VIII (all engine variants)
• Toyota pickup trucks with 12V electrical systems
• Related Toyota commercial vehicles

Each alternator undergoes compatibility verification testing. We ensure mounting bolt patterns, electrical connections, and pulley alignment match your original equipment exactly. This eliminates installation complications and ensures immediate functionality.

Quality Control Standards for Output of 12V Alternator

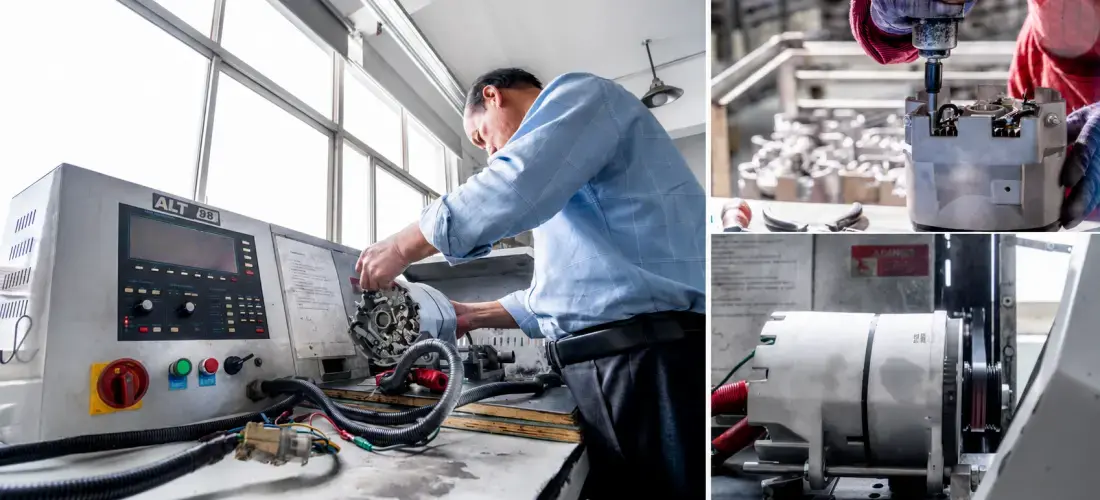

Professional procurement needs multi-stage testing. Our quality assurance method checks all essential performance parameters.

Load Performance Testing: We check amperage output at all RPMs. From idle to maximum speed, each unit must satisfy specification curves.

Thermal Soak Testing: Full load until steady-state temperature exceeds 90°C. We assess output deterioration % to maintain performance under heat stress.

Diode bridge leakage is detected by oscilloscope analysis. We keep ripple current below 10% of rated output to prevent AC leakage that disrupts sensitive oecus and telematics.

Heat Run: Alternators run at full capacity for 2-4 hours. This ensures voltage regulator stability when temperatures rise during continuous operation.

Environmental Durability:

• Salt Spray Testing (ASTM B117) validates casing integrity against corrosion
• Vibration Endurance Testing (ISO 16750-3) simulates harsh road conditions
• Temperature cycling confirms performance across -40°C to +85°C range

Our IATF 16949 certification mandates documented traceability for every component. From raw copper wire to finished assembly, quality checkpoints ensure you receive alternators meeting international automotive standards.

Manufacturing Advantages & Core Capabilities

Industrially strong manufacturing partners are essential to your supply chain. Wuxi Xitu ensures quality via size, technology, and certification.

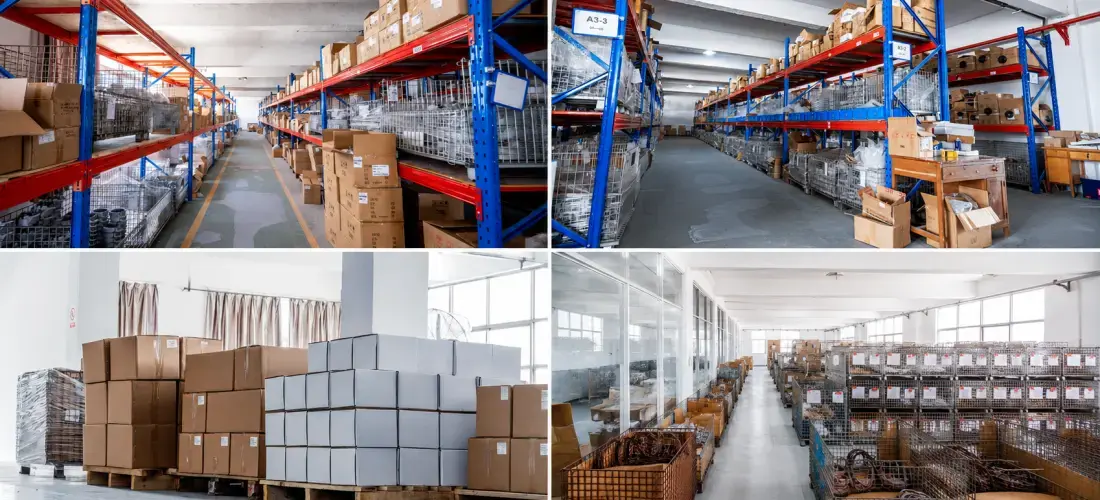

Production Infrastructure:

Our 20,000 m² facility has 50+ precision alternator production equipment. Hair-pin technique in advanced winding machinery optimises copper fill density. This reduces heat and internal resistance and boosts efficiency.

Annual Capacity:

We create about 500,000 units annually. Large OEM and aftermarket distribution initiatives benefit from this bulk capabilities. Inventory flows smoothly with stable lead times and effective supply chain management.

Engineering Expertise:

Every design is backed by 20 years of vehicle electrical system experience. Field performance data informs our R&D team's product structure optimisation. We customise voltage regulation, amperage values, and mounting configurations to your needs.

Quality Certifications:

• IATF 16949: Automotive quality management system
• ISO 9000: Comprehensive quality management
• SAE J56 & ISO 8854 compliance for alternator performance standards

Global Market Proven:

Our alternators operate successfully across North America, South America, Europe, and Russia. This international exposure validates performance reliability in diverse climates and operating conditions. We maintain long-term partnerships with leading domestic manufacturers and export distributors worldwide.

Installation & Performance Optimization

Proper installation maximizes the Output of 12V Alternator throughout its service life. Follow these professional guidelines for optimal results.

Pre-Installation Inspection:

Check belt tension against your car manual. Uneven tension wears bearings and lowers charging efficiency. Check all electrical connections for corrosion before installing.

Mounting Procedure:

Match bracket bolt holes to engine mounting positions. Adjust torque mounting bolts to manufacturer requirements to avoid cracking aluminium housings. Maintaining pulley alignment reduces belt tracking concerns.

Electrical Connections:

Connect battery positive terminal first, then ground. Check plug connector orientation for OEM. Poor connections diminish charging power by lowering voltage.

Belt Installation:

Only use 7PK belts with 58.5mm pulleys. Check belts for cracks or glazing that limit power transfer. Belt tension should allow 10-15mm deflection under thumb push.

Post-Installation Testing:

With engine idle, check battery terminal voltage (13.5-14.0V). RPM to 2,000 should raise voltage to 14.2-14.8V. Engage headlights, HVAC, and accessories while monitoring voltage stability to load test.

FAQ

Q: What does product mean for my car's electrical system?

A: The output is the voltage and amperage of the electrical power generated. Despite being labelled "12V," working alternators produce 13.5-14.8V for battery charging and car electronics. We provide enough electricity for modern automobiles with many electrical accessories at 90A.

Q: Does this alternator suit my Toyota model?

A: Compare your alternator part number to our compatibility list. We match Toyota/Bosch part numbers F000BL0131, 27060-0L150, and several others. The 7PK pulley and standard bracket suit HILUX VIII and comparable models directly.

Q: What testing do you complete before sending alternators?

A: Each device conducts ISO 16750-3 vibration endurance testing, load performance testing over complete RPM range, heat soak testing at 90°C+, and rectifier diode integrity tests. Before packing, output voltage regulation and amperage curves are checked.

Q: What reduces alternator output over time?

A: Worn brushes, bearing deterioration, rectifier diode failure, and voltage regulator drift are common reasons. Quality components and thermal control reduce these concerns in our alternators. Manufacturing deterioration is covered by the 6-month warranty.

Q: Can this alternator handle additional electrical accessories beyond factory equipment?

A: The 90A output offers reserve capacity beyond factory electrical demands. With engine at idle speed, your total accessory amperage flow should be below 70-75A for adequate charging. Upgrade to higher-amperage versions for larger loads.

Q: How does your alternator differ from cheaper aftermarket ones?

A: We utilise fresh copper windings and aluminium housings. Remanufactured cores or inferior materials are used in cheaper replacements. Our IATF 16949 accreditation guarantees OEM-level quality, unlike inexpensive choices.

Q: How does temperature effect alternator performance?

A: Voltage regulator drift and output efficiency decrease with high temperatures. In hot conditions, our integrated voltage regulators automatically lower power as battery temperature rises to prevent overcharging and battery damage.

Q: What maintenance does the alternator require?

A: Check belt tension and bearing wear sounds every 10,000 miles. Check electrical connections for cleanliness and tightness. Modern alternators' internal maintenance is minimal, but exterior cleanliness prevents dust from reducing cooling performance.

Packaging & Logistics

Each alternator is protected for international shipping. Individual corrugated containers have foam padding. Corner protectors and stretch wrap secure several palletised items.

Standards for export packing satisfy ISPM 15 for wood. English carton labels feature part numbers, quantities, and handling directions. For large purchases or distribution, we provide bespoke packaging.

Lead times vary by order amount from 15-30 days. Our logistics team optimises transportation routes with major goods forwarders. Our paperwork includes business invoices, packing lists, and origin certifications.

Partner With XITU for Reliable Power Solutions

Your vehicle electrical system deserves components built to professional standards. Wuxi Xitu's alternators combine two decades of manufacturing expertise with modern quality control systems.

We understand your need for consistent supply, competitive pricing, and responsive technical support. Our customer service team provides prompt guidance on product selection, technical specifications, and after-sales service.

Contact Us

Ready to discuss your alternator requirements with Output of 12V Alternator? Contact our export team at arisa@xitu-auto.com for quotations, technical specifications, or customization options.
